TR4050 & AX15 to TLC 16 SPL
+ -
Digital Downloads

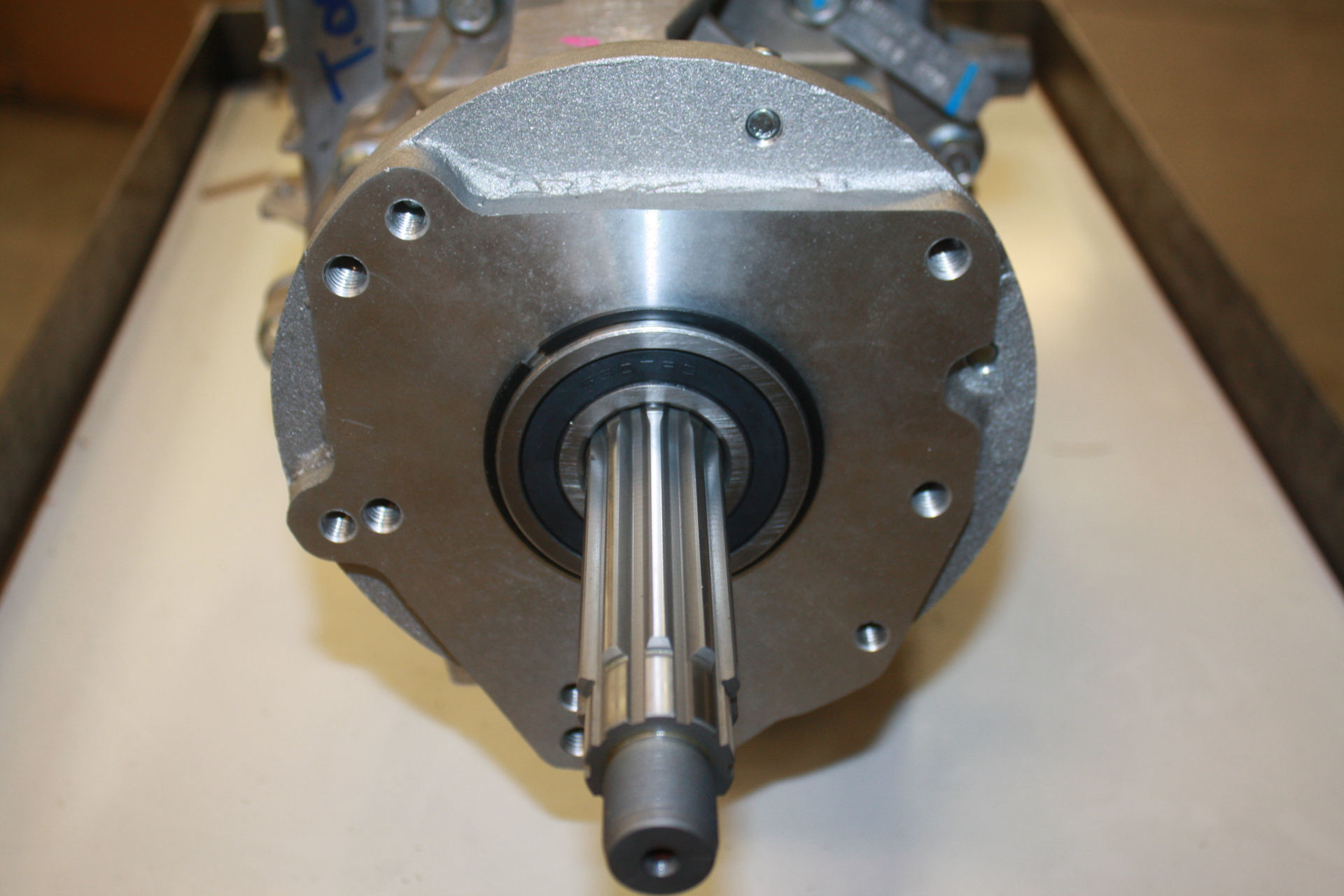

This adapter kit is designed for the Tremac TR4050 or the AX15. This adapter fits the Toyota Land Cruiser 16 spline transfer case. This adapter is a simple bolt on kit to the circular bolt pattern on these transmissions.

Note: both transmission will require the transmission output shaft to be trimmed .300" we recommend using some tape to mark the cut off location. If you do not want to cut the output shaft of the transmission, we offer a .500" spacer that can be used P/N 51-8610. If you look at doing this option you will also need 6 longer bolts P/N 723724.

Transfer case twin stick shifter for the AX15 is 715573

Transfer case twin stick shifter for the TR4050 is 715574

Bill Of Materials

Products specifications
Transmissions Asin AX-15 Manual 4 Wheel Drive Jeep 1989-1999
Transfer Cases Toyota Land Cruiser (1974-July 1980) - (16 Spline Input)
Transmissions Tremec TR4050
