DANA 300 SHORT TAIL 32SP OUTPUT NO YOKE INCLUDED

SKU: 50-3034A
$456.13
excluding shipping

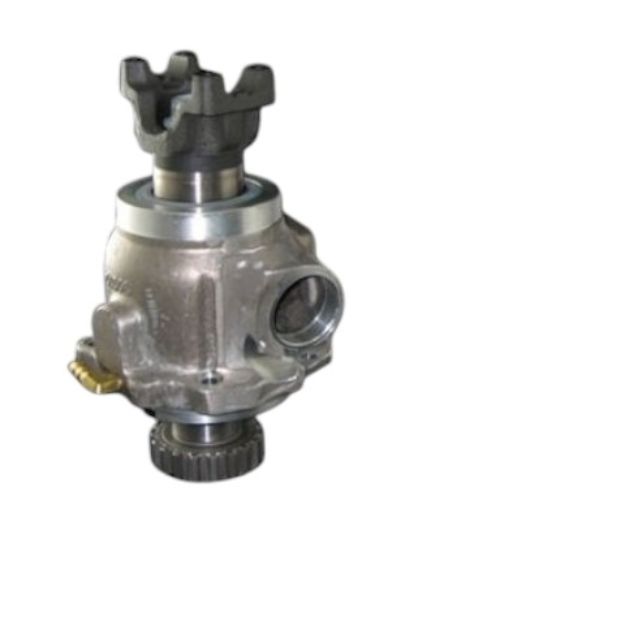

Heavy Duty Dana 300 Rear Output Shaft Kit (1980-1981 Short Style Dana 300)
+ -

Advance Adapter

Note: The 1980-82 Dana 300 can is identified with a 3.250" length tailhousing and the speedometer hole provision measuring .875" in diameter.

The Jeep Dana 300 transfer case is a strong, compact transfer-case. However, the rear output shaft is not as strong as it could be. The stock rear output is known to be weak and is no match for lower gears, big tires, and V6 / V8 engines.

We offer a heavy duty tailhousing kit for the Jeep Dana 300. This kit features a new 1 3/8"-32 spline rear output shaft, 356 T6 heat treated aluminum alloy tailhousing, your choice of rear yoke, shims, bearings, fastening hardware, and detailed instructions. The new speedometer drive gives you the advantage of calibrating your tire and axle gearing. Due to this feature, our tailhousing is 1.5" longer than stock.

NOTE: Speedometer drive (301506) is sold separately. The new speedometer drive gives you the advantage of calibrating your tire and axle gearing.

Transfer Case

The kit is designed for exclusive use with the Jeep Dana 300 transfer case. The adapter assembly is application specific for the short version tailhousing of the Dana 300. The short style tailhousing measures approximately 3.5". This Dana 300 will require our 50-3034 kit (short style).

This kit can be used with the 1980 Scout Dana 300 version

Bill Of Materials

Products specifications
Transfer Cases Jeep Dana Spicer 300 - Short Style (23 Spline Input)
Model CJ8
Model CJ7
Model CJ5
Make Jeep
*
*
*
