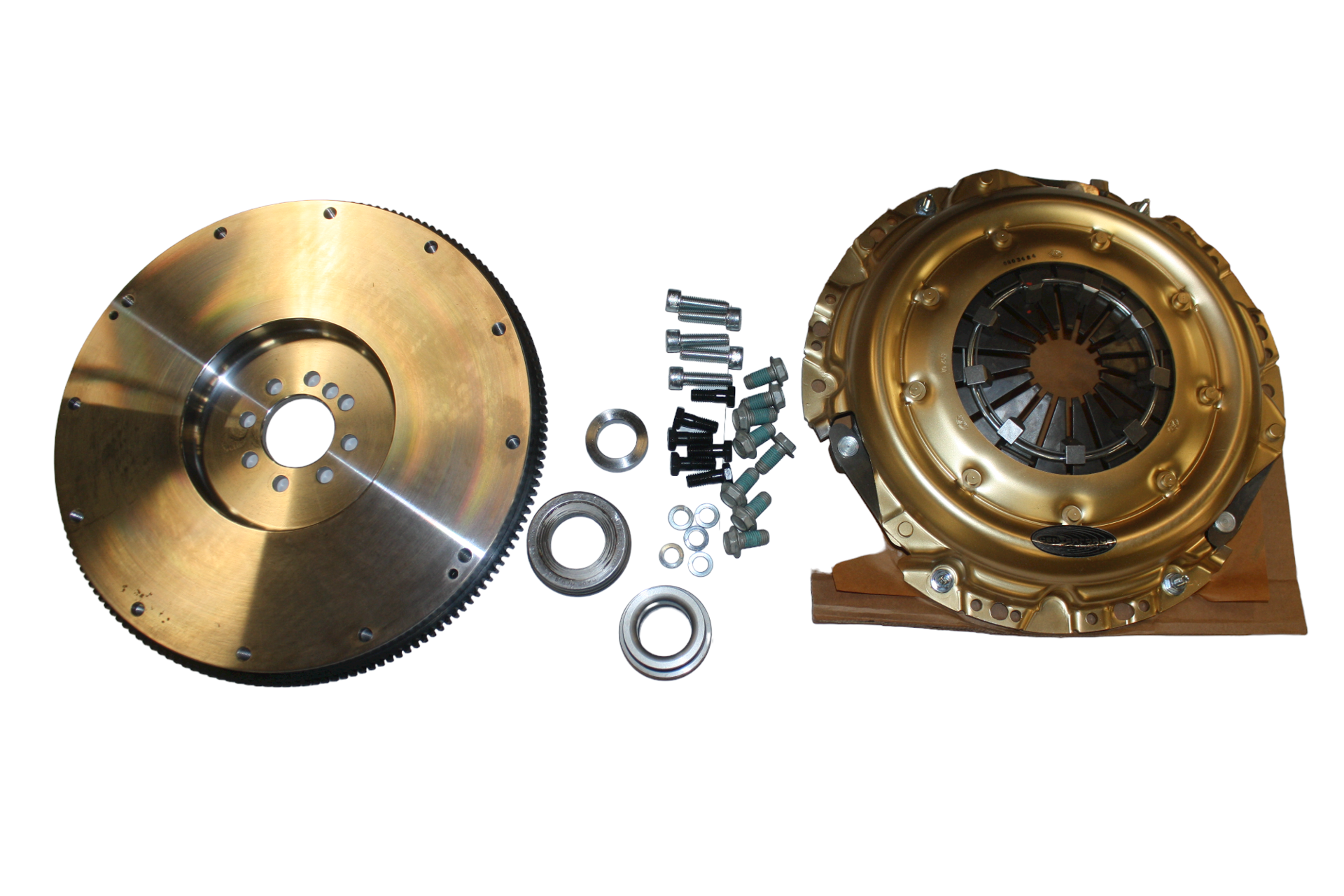

This custom clutch kit is designed to adapt the Gen III / LS series to a GM manual transmission (M21/M22, SM420, SM465, NV4500). The clutch kit includes a custom flywheel, 11mm flywheel bolts, 11" Centerforce pressure plate, pilot bushing spacer, throw-out bearing, 10mm bellhousing bolts, 10mm lock washers, XRP dowel bolts.
Note: The flywheel included in this kit was developed for exclusive use for Advance Adapters. The flywheel offsets the distance of the disc surface .400 inch towards the transmission to make up for the shallow crank (.340 inch) flange on the LS engines. This design allows full clutch disc spline engagment on the transmission input shaft. The flywheel is relieved on the backside to maintain a 30lb weight.
Note: We can also use this clutch kit with Gen III / LS Engines to Jeep manual transmission (AX15 / NV3550) & Ford manual transmission (NP435/T-18). When using these transmissions the throw-out bearing retainer must be machined!!! Ford 4 speed applications will need a 1-1/16 10 spline clutch disc.
Gen III / LS Engines
The new style Gen III / LS series engines (4.8, 5.3, 5.7 LS1, 6.0, 6.2) all have the same crank stick out which is .400" closer to the block than the old 350 V8. The Gen III / LS series crank bolt pattern is different than any other GM crank as to the bolt pattern on the flex plate. Only Gen III / LS series flywheels fit these engines!!! The Gen III / LS series engines are internally balanced block which is different than the 1986 & newer standard GM blocks (305,350).
Note: The flywheel in this kit does not fit the older 6.0L with cast iron heads & 4.8L that was used with manual transmissions.
Note: Kit will not fit 2014 & up Gen V engines (New LT1 V8 & 4.3 V6, 5.3, 6.2)
Bill Of Materials
712500M-D
