FORD TRANS 6.5 INPUT TO GM V8

Advance Adapter

This adapter bellhousing assembly is used to adapt the GM 4.3, V8 to a Ford 4 speed manual transmissions. The bellhousing has been popular when using the Ford NP435, T-18 & T-19 truck transmissions.

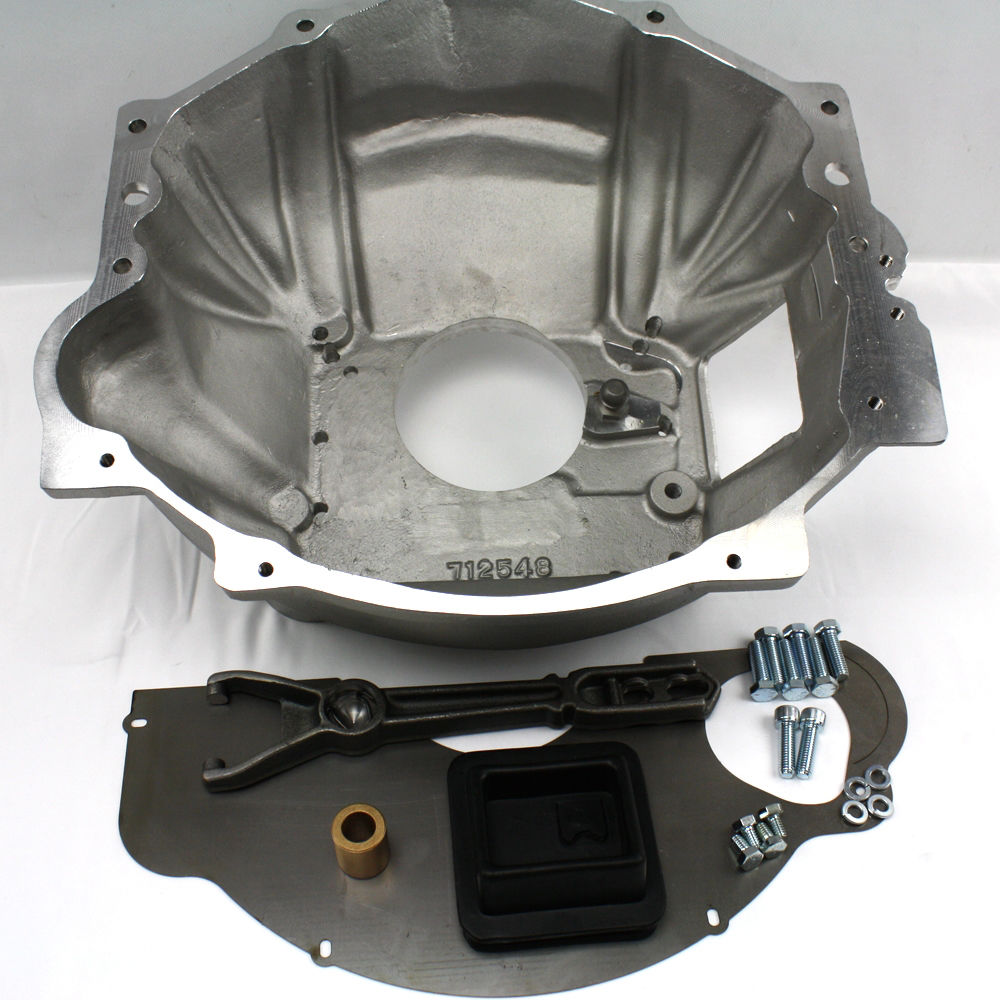

Included in the bellhousing kit you will receive a 356 T-6 aluminum alloy bellhousing, universal dust cover plate, throw-out arm, pilot bushing, ball pivot, throw-out arm boot, fastening hardware, and adapter instructions.

Note: Bellhousing does not fit Mustang T-5 transmissions.

Note: The bellhousing has been designed to be used in Jeep applications. The Jeep mechanical clutch pivot can bolt directly to the bellhousing. Hydraulic clutch application, we offer our Jeep slave cylinder kit p/n PN716331.

Note: Don't forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!

Bill Of Materials

• BALL PIVOT-AA BELL HOUSING / 716180
• BUSHING- CHEVY CRANK / 716193
• LEVER- THROW-OUT CLUTCH GM / 716176
• BELLHOUSING- GM TO JP T4/T5/T176 / 712548-BLK
• DUST SHIELD- GM BELL HSG / 712548-PLT
• T/O ARM BOOT - A/A BHSG. / 716332
• BOLT 3/8 -16 X 1.25" SHCS ZNC / 723730
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• LOCK WASHER 5/16 PLATED / 723103
• BOLT 5/16-18 X 0.50" HHCS PLTD / 723123
• GM THROW-OUT LEVER SPRING CLIP / 716176SC
• WEDGE- FORK- SLAVE CYLINDER / 716139
