4L60E HEX PATTERN/4L60E SHAFT 50-0405E

Advance Adapter

This kit has a reluctor ring that fits a stock GM 4L60E / 4L65E / 4L70E 4WD output shaft, if you are using a Advance Adapters 700R output shaft then you need to use kit PN50-0405.

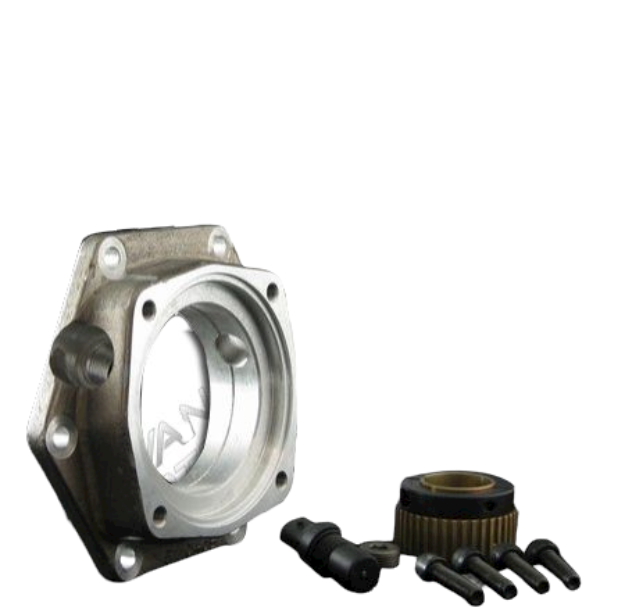

This kit was designed to adapt the late model 4L60E hex bolt pattern to any 700R adapter that Advance Adapters manufactures. The adapter length is 1.50" and when bolted on to the 4L60E, the overall length of the transmission is 23.375". Adapter material is 356 T-6 heat treated aluminum alloy. The adapter kit includes an adapter housing, GM VSS sensor, clamp-on reluctor ring, fastening hardware and adapter instructions.

Transmission

The adapter kit is designed for exclusive use with a late model 4L60E with a removable bellhousing.

For more information on VSS (click here)

Bill Of Materials

• SENSOR- SPEEDOMETER / 300619
• ADAPTER- 4L60E/700R4 UNIVERSAL / 51-0405
• PLUG-22MM RELUCTOR SENSOR PLUG / 716079
• BOLT 10mm 1.5 X 35mm SHCS 12.9 ZINC / 720028
• RELUCTOR- 4L60 INTEGRAL CLAMP / 716074
