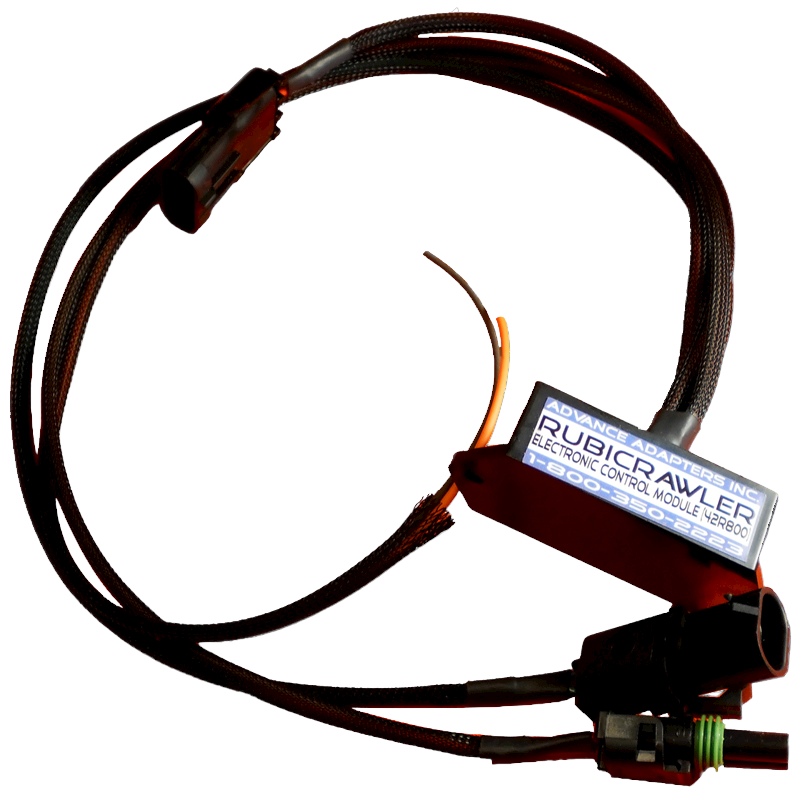

RUBICRAWLER CONTROL MODULE

We have also designed an electronic interface assembly that integrates the RubiCrawler into the Jeep Wranglers electronics. The primary function of the RubiCrawler Control Module is to allow the Rubicon's locking differentials and disconnecting swaybar (JK only) to operate when the Rubicrawler low is engaged. When this module is installed and the RubiCrawler is engaged in 2.72 low, the Rubicon's electronics and features will operate just like the stock vehicle in low range. For Jeep JK owners, this has the added advantage of allowing the vehicle to be driven in 2 wheel drive (low) and have the stability control system turned off automatically.

November 2023 we updated to new wire color code on the control module. We have kept both instruction sheets listed for the older color coded kits.

Bill Of Materials

• CONTROL MODULE, HARNESS SUB ASSY / 42R800-A
• MICRO/MINI FUSE HARNESS SUB ASSY / 42R800-C
• POWER SUPPLY WIRE FOR 42R800 KIT / 42R800-E
• HEAT SHRINK BUTT CONNECTORS / 42R800-F
• HEAT SHRINK 2" FOR FUSE TAP / 42R800-G
