TOY.TACOMA 26SP TRANS/ATLAS TC

Advance Adapter

Tacoma 1996-04 w/ 2.7L Engine With Manual or Automatic Transmission

4 Runner 1996-02 w/ 2.7L Engine With Manual or Automatic Transmission

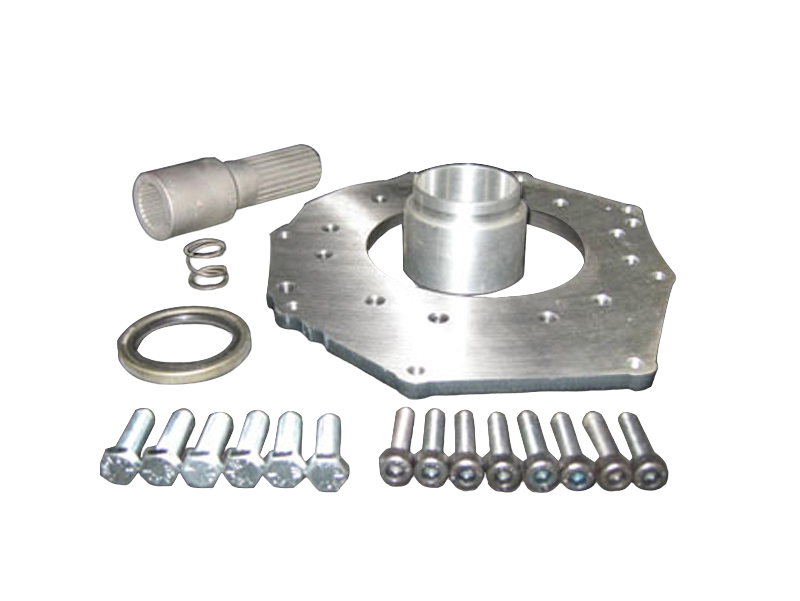

The Toyota Tacoma transmission adapter to our Atlas transfer case is .375" in length. This adapter will work with both 5 speed manual and automatic transmission with a 23 spline output shaft. The adapter kit includes a adapter plate, 26x23 spline spud shaft, spud shaft spring, oil seals, fastening hardware and adapter instructions.

Transmission

This kit is designed for exclusive use with the W59 5 speed manual and A340E automatic transmission. These transmissions were used only with the 2.7L engines. These transmission were used in model years 1995-2004.

Bill Of Materials

• SPUD SHAFT SPRING FOR 50-5710 KIT / 716178
• SHAFT- TOY.TACOMA 26F TO ATLAS 23M / 52-5711
• ADAPTER- ATLAS TO TOY TACOMA / 51-5710
• RETAINER- SEAL TOY TRANS/ ATLAS / 716189
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• 8mm X 1.25 X 35mm S.H.C.S. black oxide / 720066
• SEAL-SKF TOY/ATLAS / 716756
