TOY.TACOMA 23SP TRANS/ATLAS TC

Advance Adapter

Tacoma 1996-04 w/ 3.4L V6 with Automatic or Manual Transmission

4 Runner 1996-02 w/ 3.4L V6 with Automatic or Manual Transmission

Tundra 1999-06 4.7L with Automatic Transmission

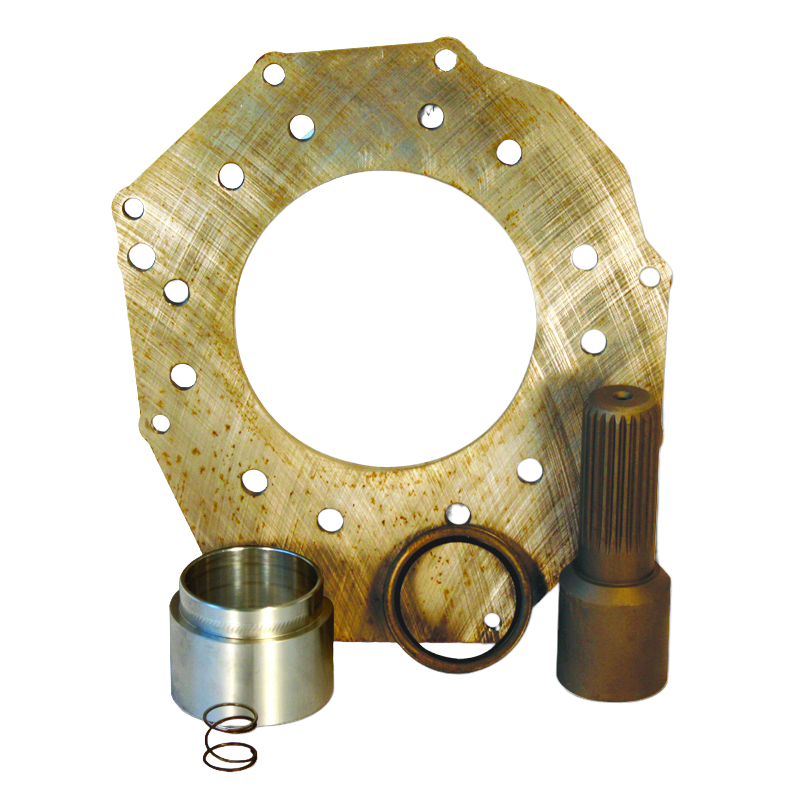

The Toyota Tacoma transmission adapter to our Atlas transfer case is .375" in length. This adapter will work with both 5 speed manual and automatic transmission with a 23 spline output shaft. The adapter kit includes an adapter plate, 23x23 spline spud shaft, spud shaft spring, oil seals, fastening hardware and adapter instructions.

Transmission

This kit is designed for exclusive use with the R150F 5 speed manual and A340F automatic transmission. These transmissions were used only with the 3.4 / 5VZ-FE engines. These transmission were used in model years 1995.5-2004.

Bill Of Materials

• SEAL-SKF TOY/ATLAS / 716756
• 8mm X 1.25 X 35mm S.H.C.S. black oxide / 720066
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• RETAINER- SEAL TOY TRANS/ ATLAS / 716189
• ADAPTER- ATLAS TO TOY TACOMA / 51-5710
• SHAFT- TOY23 TO NP23 SPUD / 52-5710
• SPUD SHAFT SPRING FOR 50-5710 KIT / 716178
