Advance Adapter
This adapter bellhousing assembly is used to adapt the GM 4.3, V8 to the Jeep series SR4, T-4, T-5, T-150 & T-176 transmission. The bellhousing is used for both 4 cylinder and 6 cylinder applications.

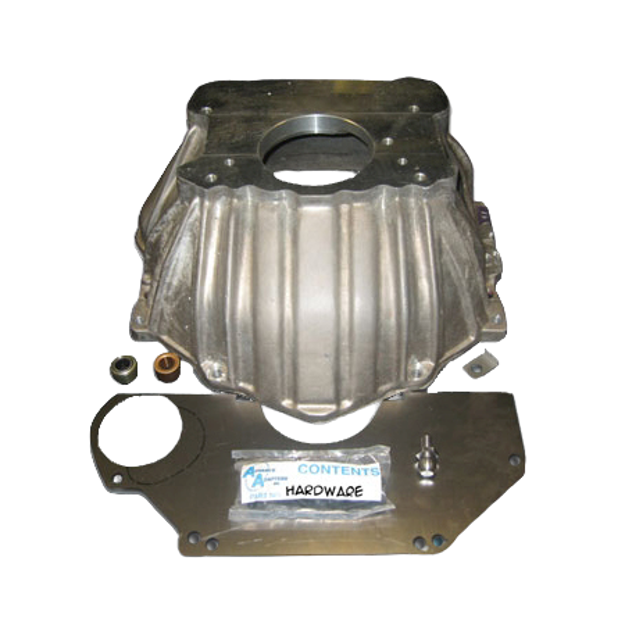

The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, two pilot bushings with (.670" or .590") inside pilot diameter, ball pivot, fastening hardware, and adapter instructions.
Note: When replacing the 1980-86 Jeep 258 6 cylinders, the original clutch throw-out arm and throw-out bearing will be re-used. Or a Advance Adapters replacement GM arm P/N 716176 & bearing P/N N1714 can be used. All other Jeep CJ-7 applications will need the new throw-out arm and bearing.
Note: When replacing a 4 cylinder, you must change the throw-out arm and throw-out bearing. Use Advance Adapters P/N 716176 throw-out arm, P/N N1714 throw-out bearing, and P/N 716332 bellhousing boot..
Note: Don't forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!
Note: Bellhousing does not fit Ford T5
Bill Of Materials
712548
