DODGE NV4500 23 SPL./TOY L.C. 16 SPL

Advance Adapter

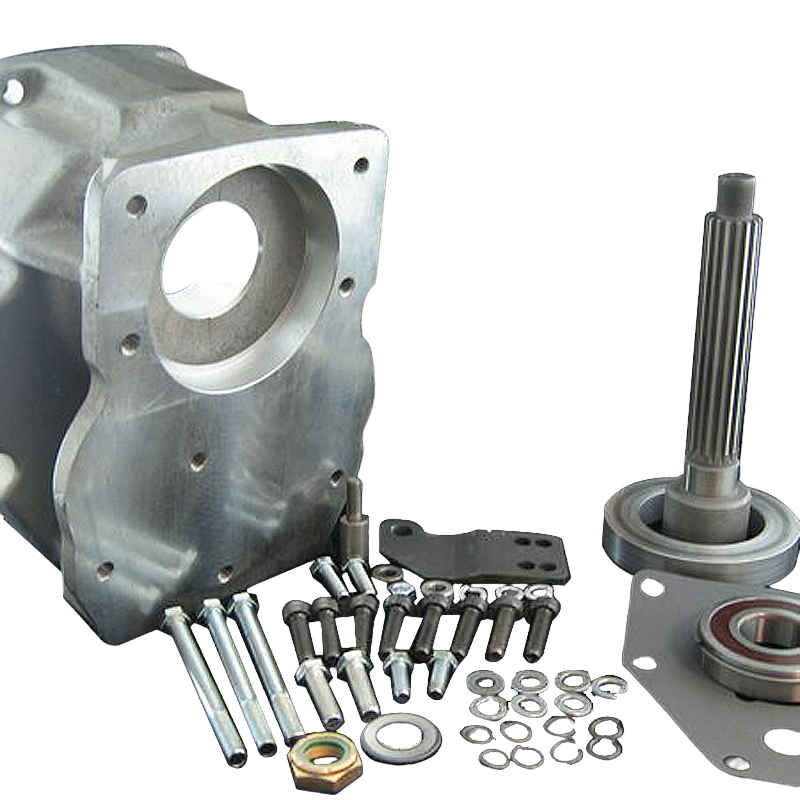

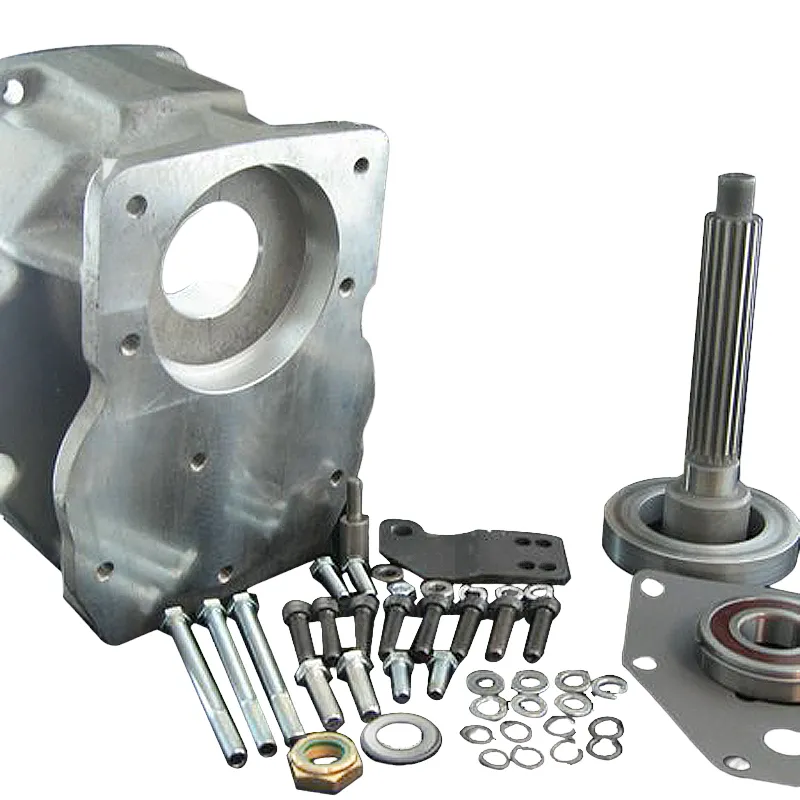

The Dodge NV4500 adapter to the Land Cruiser 16 spline transfer case is 6.375" in length. And the overall length of the transmission and adapter is 18.875". Adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes an adapter housing, 16 spline spud shaft w/ 23 spline internal, transfer case linkage bracket, sealed bearing, set collar, gasket, nylon nut, fastening hardware, and adapter instructions.

Transfer Case

This adapter assembly fits 1974 to July 1980 16 spline transfer cases. The drive gear has 16 internal splines and a diameter of 1.259". The transfer case bolt pattern is the same as the earlier 3 speed transfer cases.

Bill Of Materials

• H.H.C.S. 7/16 -14 X 5 GRD 5 / 724345
• 7/16 -14 X 1-1/2 Grd 5 hhcs / 724349
• LOCK WASHER 7/16 STD PLTD / 724303
• HIGH COLLAR L/W 7/16 / 724324
• NUT-NYLON LOCK 7/8 -16 / 728701
• SPECIAL FLAT WASHER / 728702
• SMALL HOLE RETAINER 51-0224 / 716199
• BEARING SEALED 307 W/ SNAP RING/ LANDCRUISER / 716301
• HOUSING- NV4500 TO LAND CRUISER / 51-0224
• TOY LC 16SP.X NV 23TH INTERNAL / 52-0226
• WASHER 3/8 SAE FLAT PLT / 723735
• H.H.C.S. 3/8 -16 X 7/8 GRADE 5 zinc / 723739
• TOYOTA T.C. GASKET / 716507
• 10mm-1.5THR X 40mm S.H.C.S. black oxide / 720046
• TOY L/C T/C SHIFT BRKT SHORT / 715532-BLK
• LOCK WASHER 3/8 ZINC / 723704
• NUT 3/8 -16 PLATED GRD 5 / 723701
• H.H.C.S. 3/8 -16 X 1 PLATE GR5 / 723721
• SPACER- SHIFTER SM420 / 716049
