6. NV4500 Shifters

SHIFTERS

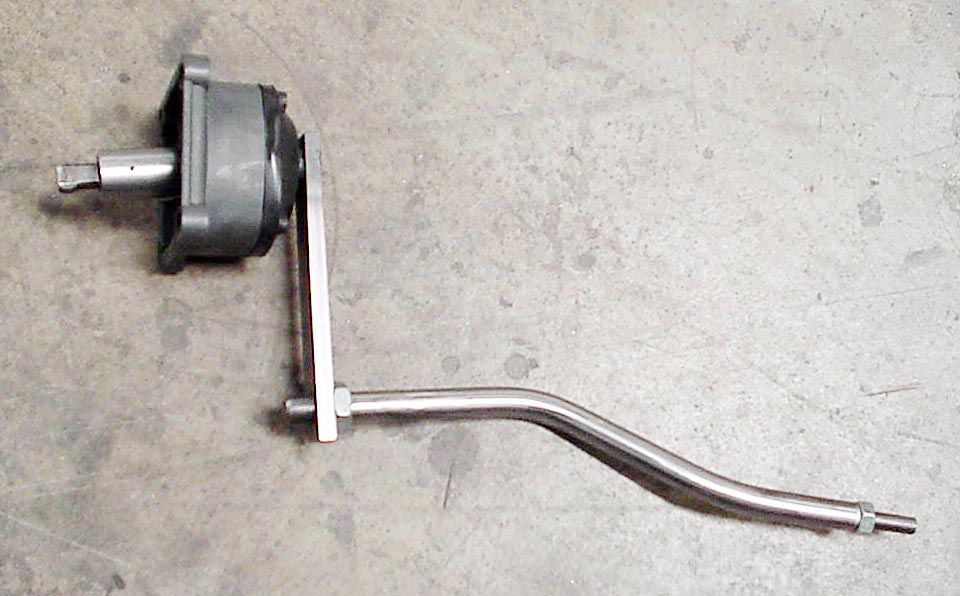

The year and the model of your NV4500 transmission (GM or Dodge) will determine the shift handle assembly your transmission is equipped with.  The early top covers used a retaining cap and spring assembly for the shift handle while the later versions used a 4 bolt assembly for the shifter. With these different shifter configurations to the top cover, the NV4500 changed the shift levers that connect to the top covers also. We offer new handle assemblies for both GM and Dodge shift top covers. The shift handles we offer are easy to install and, if necessary, easy to modify to fit your vehicle. We offer 3 shifter configurations to fit the different models manufactured.

716050C all GM transmissions.

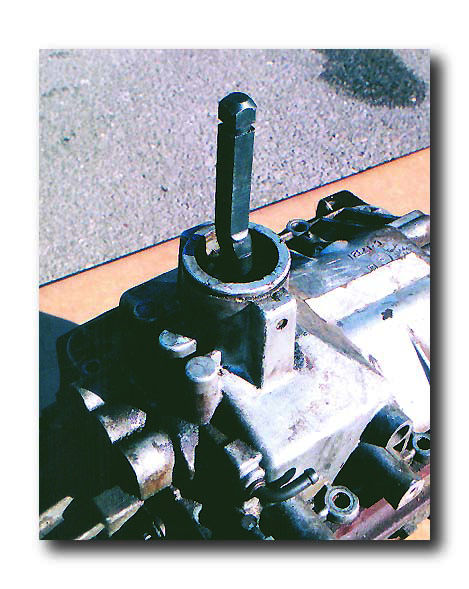

716050D early Dodge with the square stud on the top cover.

716050D1 later Dodge with a male thread.

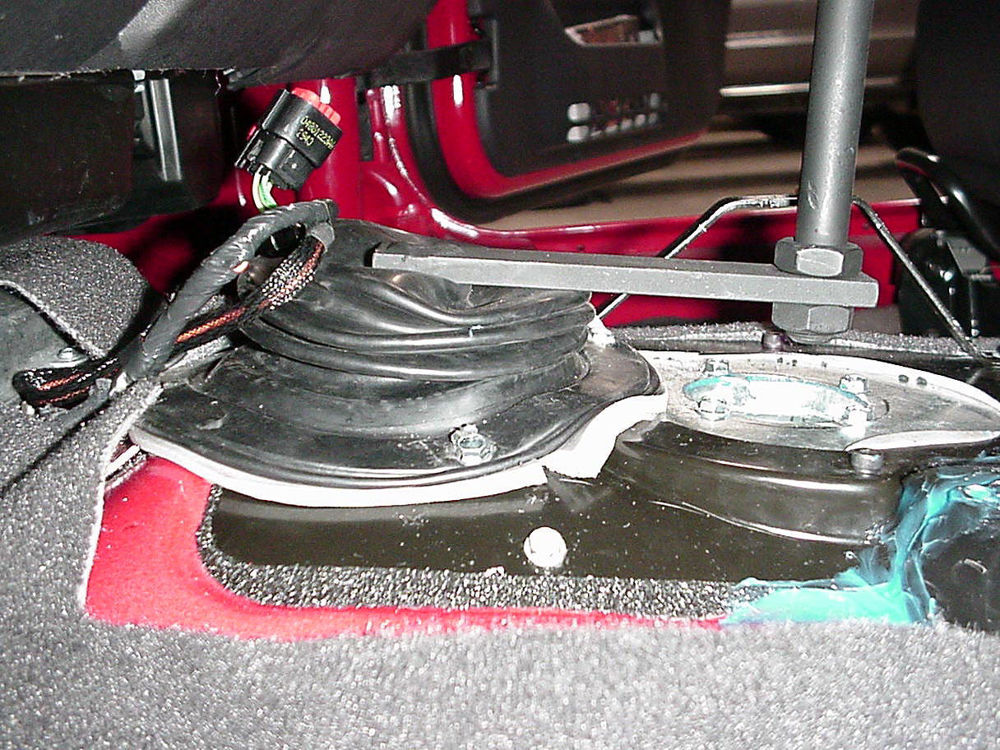

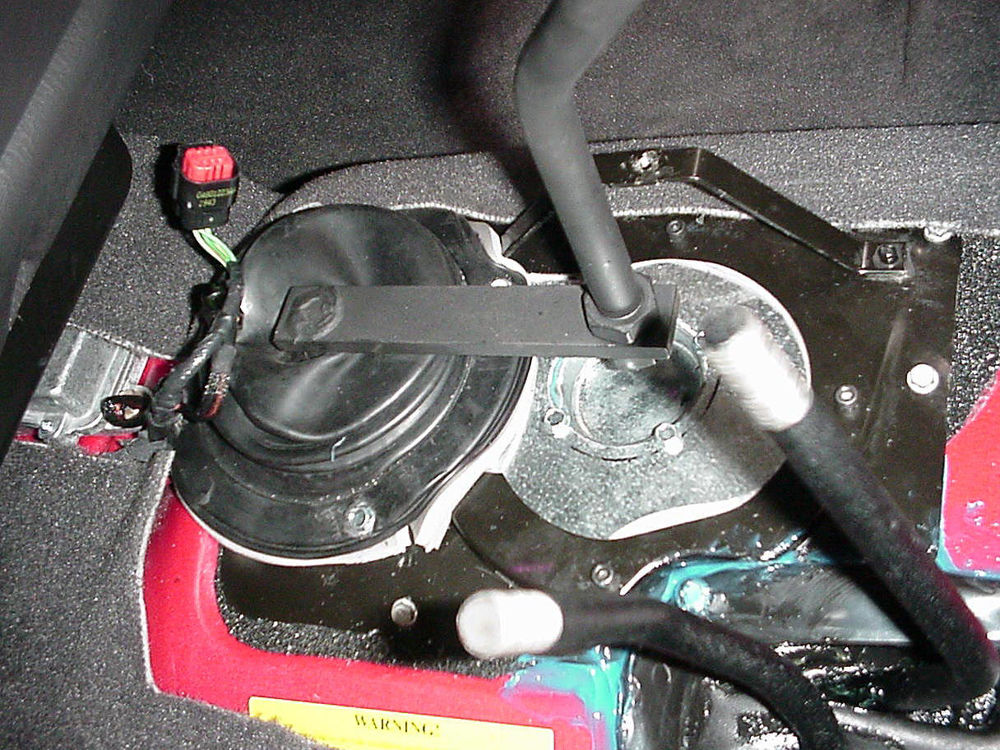

This photo shows a handle modified to come up through the stock console hole on a Jeep TJ.

Stock NV4500 Shifter Parts:

P/N 45-0001 - This vulcanized rubber spacer plate acts as an isolator and is required for all late model 4 bolt, square shift covers for both Dodge and GM transmissions.

P/N 45-0002 - Shifter top cover fits 1998 & up Dodge and 1995 & up GM. This square 4-bolt tower model comes assembled with forks, rails, springs and balls. Vent and backup light switch are not included.

P/N 45-0003 - Shift tower assembly for 1995 & up GM transmissions

P/N 45-0004 - These bushings (4) are required in order to index the shift tower to the spacer plate
