Yoke Removal Trail Tool – Yoke Puller
Removing a stubborn differential pinion yoke or transfer case yoke can be a challenge, especially when you are on the trail or working in the shop. The Yoke Removal Trail Tool is a heavy-duty yoke puller designed to safely and efficiently separate the yoke from the splined shaft without causing damage. This tool eliminates the need to hit the yoke with a hammer, reducing the risk of distortion or injury. Everything comes off in a controlled, predictable manner, making it the ideal solution for drivetrain service and repairs.
Safe and Effective Pinion Yoke Removal

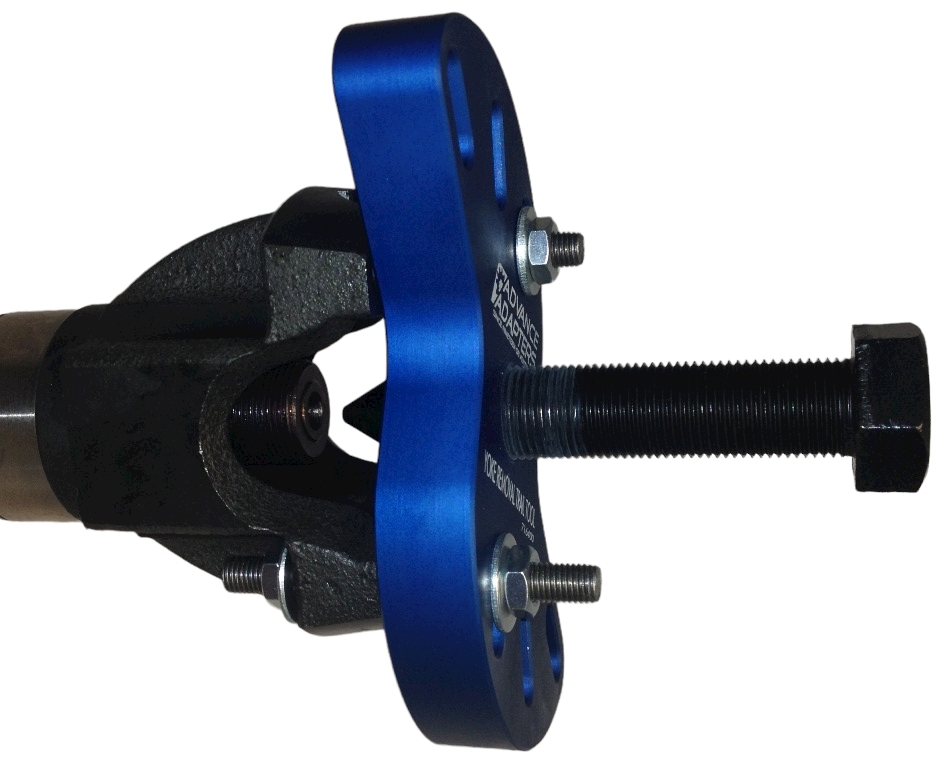

This tool functions as a reliable pinion yoke puller by threading onto the yoke and using a center bolt that presses directly against the splined shaft. As the bolt tightens, the yoke is pulled free with consistent force. The process is cleaner, safer and more precise than traditional removal methods.
Fits a Wide Range of Yoke Types
The Yoke Removal Trail Tool is compatible with many common yokes found on 4x4s, trucks and off-road vehicles. Supported yoke types include:
- 1310 Non CV
- 1310 CV
- 1330 Non CV
- 1330 CV
- 1350 Non CV
- 1350 CV
- 1410
- 1480
- DIN 120
- DIN 150
- Toyota Truck
- Land Rover
This wide compatibility ensures that you have a dependable yoke puller ready for nearly any drivetrain configuration you encounter.
Bill of Materials
- 5/16-24 Hex Jam Nut zinc / 723131
- Stud Bolt 5/16-24 x 3 / 723133
- 1/4 USS Flat Washer plated / 722523
- Plate for Yoke Removal Tool / 716401
- Centering Bolt for Yoke Puller 3/4-16 / 716402
- Bolt 1/4 x 28 x 1 1/2 H.H.C.S. Grade 5 zinc / 722533
This tool is built for durability and reliability, giving you the confidence to remove drivetrain yokes without damage or frustration. Ideal for trail repairs, garage work and professional service environments.
