GM NV4500 X FORD BHSG/NEW GEAR

Advance Adapter

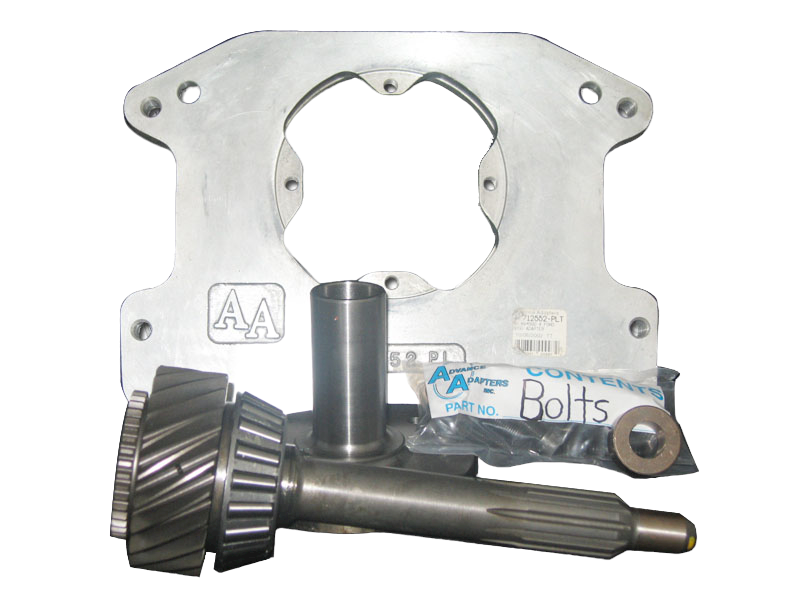

This adapter plate assembly is used to adapt a Ford Engine to the GM NV4500 5 speed manual transmission. The adapter plate is .750” in length a is manufactured from 356-T6 heat treated aluminum alloy. Included in the adapter plate kit you will receive an adapter plate, new NV4500 input shaft, custom pilot bushing, fastening hardware, and adapter instructions.

Note: This adapter plate requires a Ford truck bell housing with a 4.848” diameter center index hole.

Note: Don’t forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!

Transmission

The adapter plate is for exclusive use with only the 1995 GM NV4500 5 speed with the 5.61.1 1st gear. Cannot be used with the 6.34.1 1st version!!!

Bill Of Materials

• 5/16 -18 X 1 S.H.C.S. / 723137
• LOCK WASHER 7/16 STD PLTD / 724303
• S.H.C.S. 7/16 -14 X 1-1/4 / 724317
• LOCK WASHER 5/16 PLATED / 723103
• SHAFT-DODGE NV4500 INPUT 1-1/8 / 52-0219
• GM NV4500 X FORD BHSG ADAPTER / 712552-PLT
• BUSHING- PILOT .750 TIP FORD CRANK 1.37 / 716122
• 7/16 -14 X 1-1/2 Grd 5 hhcs / 724349
• RETAINER- FORD FRONT BEARING 4.849 / 761019
