GM HYD. SLAVE CYL BRKT

This is only used in GM Truck NV4500 conversions and not for use in Jeep V8 / NV4500 conversion projects.

This bracket is designed to locate the GM slave cylinder on the Advance Adapters PN712577 and PN712576 bellhousings.This bracket bolts to the bellhousing providing a mounting flange for your stock slave cylinder. This bracket isdesigned to fit 1985-1991 GM slave cylinders (Napa #73117).Our bellhousings are equipped with a clutch release arm normally used with mechanical linkages. The stock pushrod of your slave cylinder has no way of coupling to this release arm. The boot and push rod of the slave cylindershould be removed. Remove the boot from the stock push rod. The new push rod needs to replace the stock push rod.

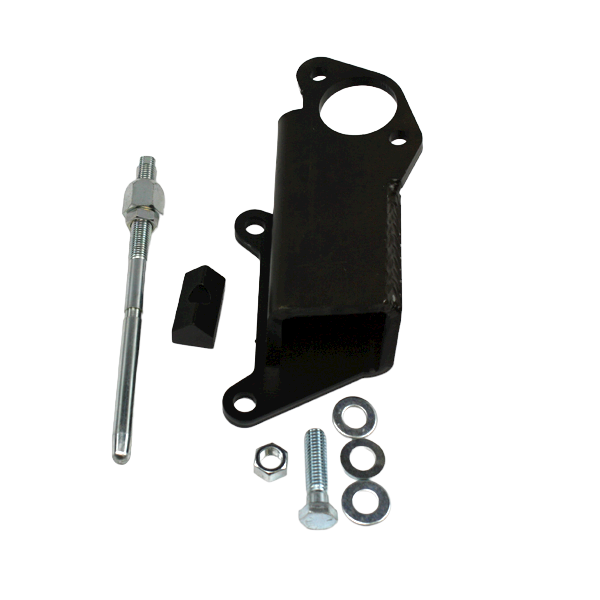

Bill Of Materials

• BRACKET- SLAVE MOUNT, GM CLUTCH / 715535-BLK
• WEDGE- FORK- SLAVE CYLINDER / 716139
• SLAVE CYLINDER PUSH ROD 10MM-1.25 / 716194
• 10mm X 1.25 NUT X 14mm WRNCH zinc / 720012
• 10mm FLAT WASHER / 720015
• WASHER 3/8 SAE FLAT PLT / 723735
• H.H.C.S. 3/8 -16 X 1-1/2 gr. 5 zinc / 723723
