Advance Adapter Note: This adapter assembly includes a new 4L60E / 4L65E output shaft. This adapter kit provides the shortest overall length possible!!

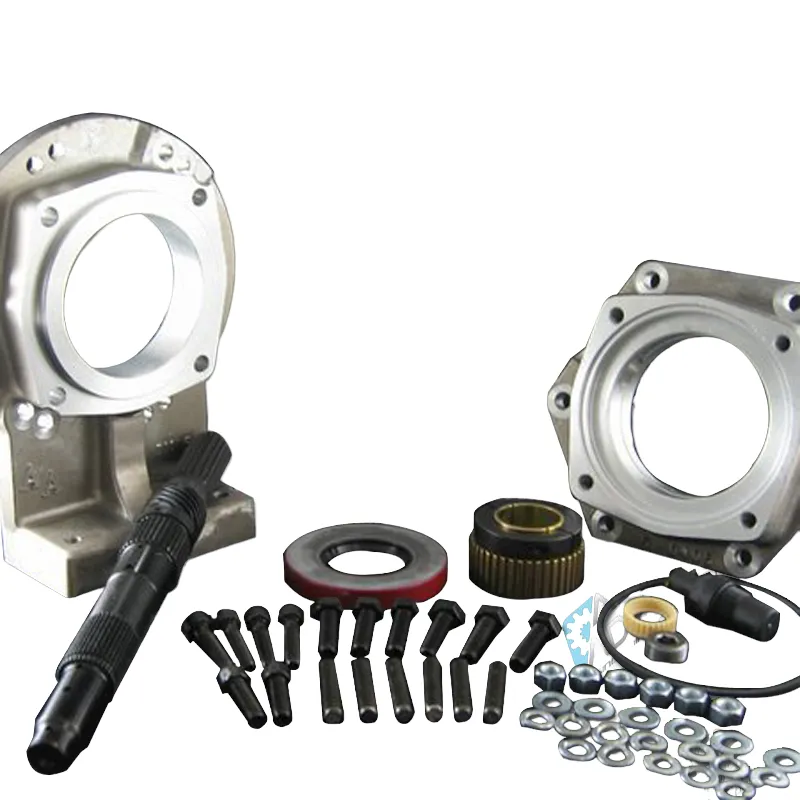

The 4L60E hex bolt adapter to the Jeep 23 spline New Process transfer case is 3.00 in length. And the overall length of the transmission and adapter is 24.875”. Adapter material is 356 T-6 heat treated aluminum alloy. The adapter has a provision our H.D. transmission mount. The adapter kit includes a 2 piece adapter housing, 4L60E 23 spline output shaft, GM VSS sensor, reluctor ring, o-ring, gasket, fastening hardware, and adapter instructions.
Note: This kit includes a new transmission output shaft that must be installed by a qualified professional.
Transfer Case
This adapter assembly will fit the Jeep New Process transfer case with a 23 spline input shaft.
Transmission
The adapter kit is designed for exclusive use with the 1997 & up GM 4L60E/4L65E with a removable bellhousing.
Bill Of Materials
Products specifications
|
Transmissions
|
GM 4L65E/4L70(M32) Automatic 4 Wheel Drive GM 2001-2006 |
|
Transmissions
|
GM 4L65E/4L70 (M32) Automatic 2 Wheel Drive GM 2001-2006 |
|
Transmissions
|
GM 4L60E (M30) Automatic 4 Wheel Drive GM 1996-2006 |
|
Transfer Cases
|
Jeep New Process 241OR (23 Spline) |
|
Transmissions
|
GM 4L60E (M30) Automatic 2 Wheel Drive GM 1996-2006 |
|
Transfer Cases
|
Jeep New Process 241 (23 Spline) |
|
Transfer Cases
|
Jeep New Process 231 (23 Spline Input) |
