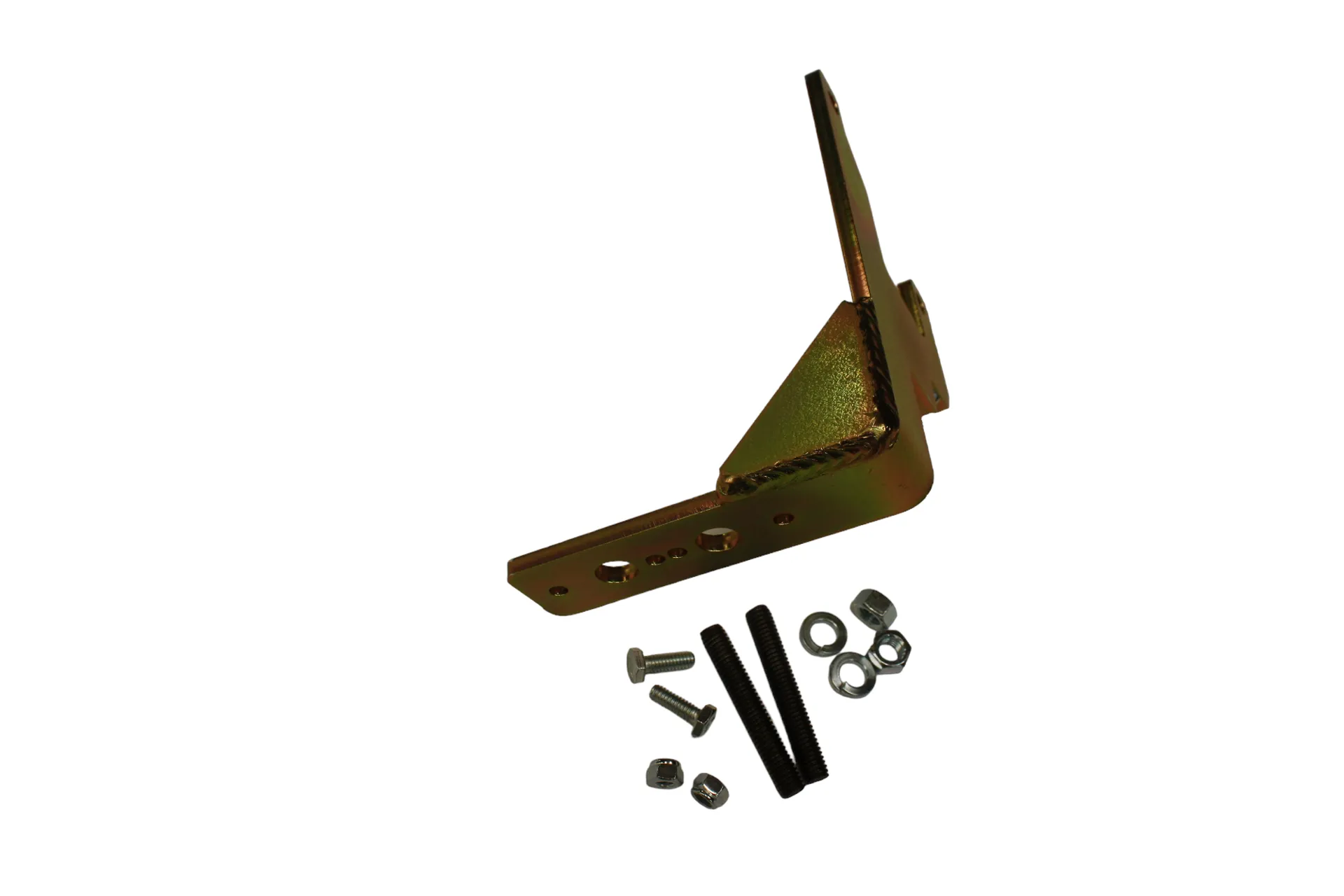

TJ TRANSFER CASE SHIFT BRKT

Advance Adapter

Our Jeep TJ transfer case shifter linkage bracket is designed to eliminate the body type mount found in the Jeep TJ.

The OEM set-up uses a bell crank that pivots between a transfer case mounting bracket and a body mount. When the transfer case moves during a transmission retro-fit or a flat skid plate is used, so does the transfer case shifter mounting bracket which will cause a misalignment of the transfer case shifter bell crank. Body lifts will also cause misalignment.

Note: When using this bracket with the "factory" Jeep TJ skid plate, our bracket kit requires no welding or cutting that is found in other after market kits.

Note: This new bracket does not fit Jeep Cherokees models. However, bracket, shifter linkage modifications could be needed. Additional Jeep TJ shifter parts may also be needed!

Bill Of Materials

• NYLON LOCKNUT 1/4 -20 Z / 722514
• NUT 3/8 -16 PLATED GRD 5 / 723701
• BRACKET- TJ T/C SHIFTER / 715542-BLK
• 1/4 -20 X 3/4 H.H.C.S. GRD 5 zinc / 722532
• LOCK WASHER 3/8 ZINC / 723704
• PLUG 7/16 BLACK / 42R745
• STUD BOLT 3/8 -16 X 2-1/2 / 723708
