Advance Adapter This kit is designed for the GM 4.3 & 350 V8 with a 168t flywheel
This adapter bellhousing assembly is used to adapt the GM 4.3, V8 to the 1984-95 Toyota Truck 5 speed manual. These transmissions are identified as G52, G54, W56, & G58. They were used in the 4 cyl, non-turbo trucks only.

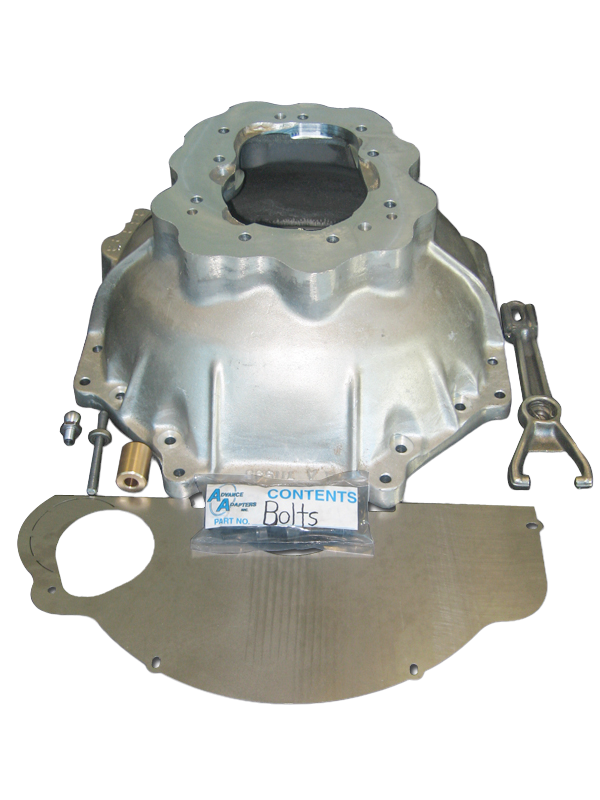

The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, pilot bushing, throw-out arm, slave cylinder push rod, slave cylinder push rod end, ball pivot, fastening hardware, and adapter instructions.
Note: When using a 168th flywheel on your GM engine a gear reduction starter is required. We offer gear reduction starts (p/n 22-0001 & 22-0003). Late model 4.3 with an aluminum oil pan must use starter 22-0001.
Note: This kit is not intended for use with any LS engine.
Note: GM 4.3 V6 conversion applications with a 168th flywheel will experience header interference with the slave cylinder & throw-out arm. At that time, it is recommended that a muffler shop custom make an exhaust down pipe.
Required Clutch Options
P/N 716213 Slave Cylinder
P/N 716105 10.5” Clutch Disc
P/N N1430 Throw-Out Bearing
P/N CF165552 11” Pressure Plate
Bill Of Materials
712560V
