When modifying, upgrading or replacing a worn-out transmission on your vehicle, purchasing the right parts and corresponding accessories can be a confusing process. Not at Advance Adapters! We make it easy with all-in-one 4L80E transmission kits that include everything needed to make the switch seamless and hassle-free.

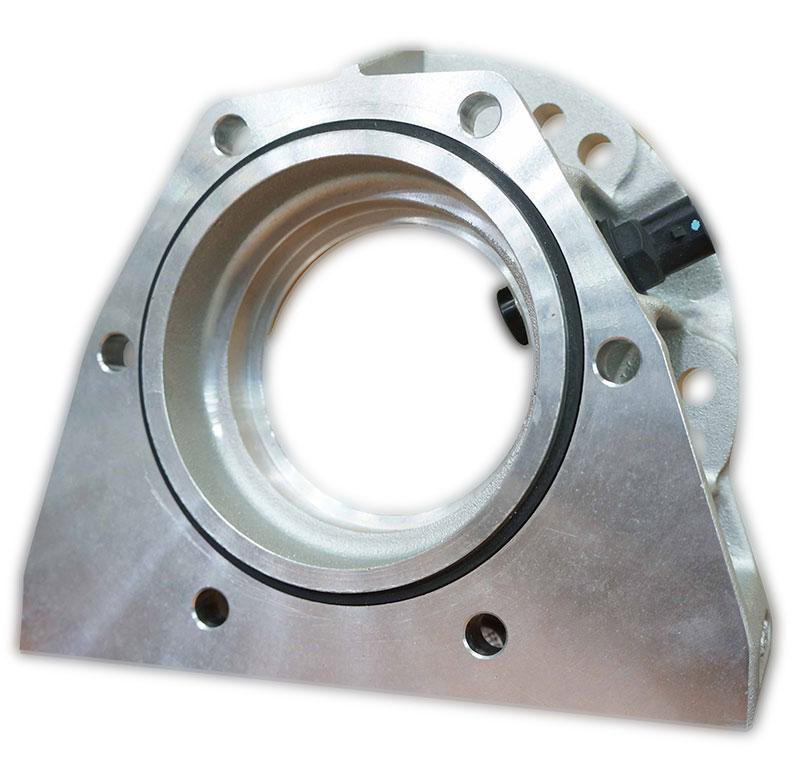

4L80E 2.75” Transmission to Atlas 2SP Adapter Kit
This new kit replaces the two-piece adapter design. The housing offers a 40-tooth reluctor ring that provides the needed signal for the 4L80E transmission.
Background Information and Specifications
GM 4L80E 4 SPEED AUTOMATIC OVERDRIVE- BACKGROUND INFORMATION The GM 4L80E has a case length of 26" and has 17 bolts for retainingthat retain the oil pan. The rear side of the transmission case will have a hex-shaped bolt pattern that uses six6 bolts. There are several output shaft different lengths of output shafts that the transmission has been equipped with, but; however, this kit requires a 4WD output shaft. THIS KIT REQUIRES A 4WD OUTPUT SHAFT.
The 4L80E transmission is normally equipped with an internal reluctor ring on both the transmission’s input shaft and output shaft. The computer needs both of these readings for the proper transmission shifting and operation of this transmissionoperating. The rear reluctor ring is not always installed into the transmission. The basic rule of thumb is 4WD transmissions up to 1996 should have a rear reluctor ring in the main transmission case. All 2WD transmissions should have the rear reluctor in the main transmission case.
The 1997 and& newer 4WD 4L80E transmissions had a sensor provisions; however, the reluctor rings in these transmissions wereas left out. Since it is expensive to disassemble the transmission to add a reluctor ring, this kit has a vehicle speed sensor built in that can be used in place of the 4L80E Output Shaft Speed Sensor.
Note: The information on about years and models of the 4L80E transmission mentioned in the above section is obtained from various sources. You should always verify what your transmission is equipped with before beginning a 4L80E transmission conversion with the 4L80E transmission.
If you have questions about the 4L80E transmission adapter case kit or are unsure if this part is the right one for your application, please contact us! We’re here to help ensure that the parts you purchase from us are the correct ones. Fill out our contact form and one of our experts will reach out to you within 24 to 48 hours.
Bill Of Materials
AS-6450
