GM V8 MT 97-05 TJ 6CYL WRANGLE

Advance Adapter

This weld-in, saddle mount kit is designed for exclusive use in the 1997-2006 Jeep TJ Wranglers with 6 cylinder engines. It is used to install a GM V8 and TH350 / 700R / 4L60 / 4L60E at the same time. This engine kit is ideal only when using a GM auto.

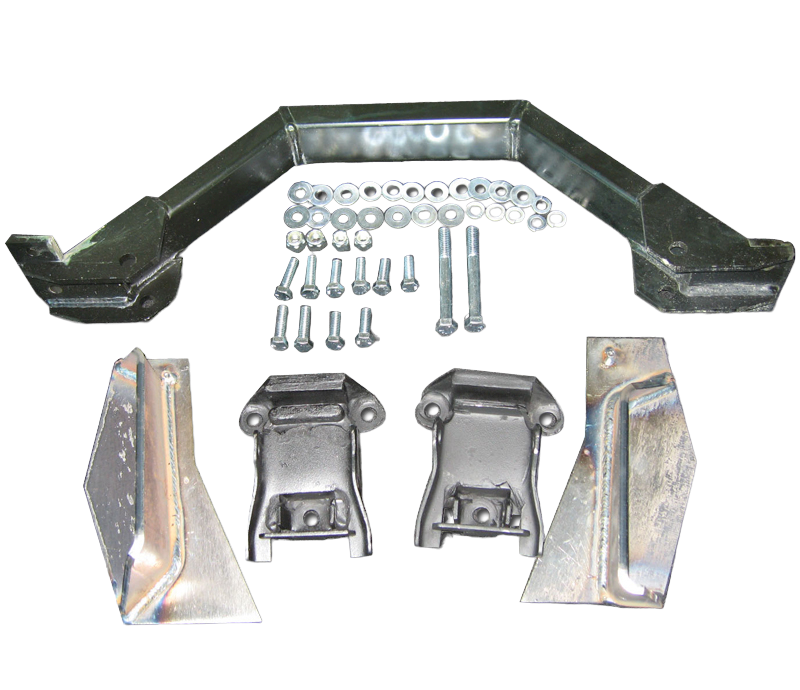

The weld-in engine mount kit includes our weld-in frame perches, stock GM engine rubber mount / cushions, fastening hardware and engine mount instructions.

This mount will not work on 383 Stroker motors or 400 small blocks or aftermarket V8 oil pans with the depth of the front of the pan exceeds 3-5/8".

Note: The weld-in engine mount saddle does not fit GM's late model Gen III / LS-Series engines. See P/N 713092 & 713093.

Note: When retaining the stock AX15 / NV3550 transmission, the AX15 / NV3550 must be moved forward to couple to the engine

If you have a 4 cylinder TJ Wrangler, use kit p/n 713090.

Bill Of Materials

• NUT 3/8 -16 NYLOCK G5 PLT / 723703
• 5/16 FLAT WASHER SAE ZINC / 723122
• H.H.C.S. 3/8 -16 X 1 PLATE GR5 / 723721
• LOCK WASHER 3/8 ZINC / 723704
• MOUNT- GM V8 TO JEEP TJ FRAME / 713091L
• GM V8 SADDLE MT 97-02 TJ / 713090-BLK
• MOUNT- GM V8 TO JEEP TJ FRAME / 713091R
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• H.H.C.S. 7/16 -14 X 3-1/2 GR 5 zinc / 724311
• WASHER 3/8 SAE FLAT PLT / 723735
• NYLON LOCK NUT 7/16 -14 PLT / 724301
• MOUNT-STOCK GM / 4980
