JEEP CLUTCH CONTROL 1946-70

Advance Adapter

Note: Chain controller assembly not to be used when replacing a cable operated clutch control!!

Note: This kit will not work on stock 4 cylinder Jeep bellhousing

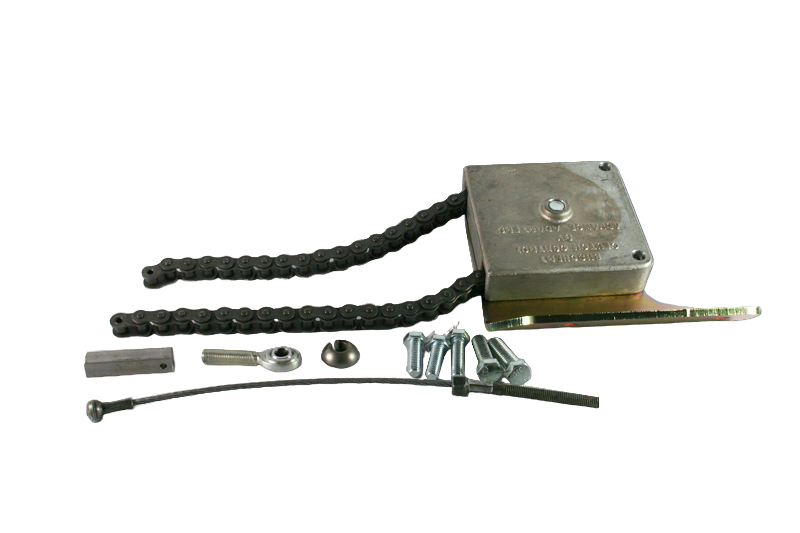

1946-1970 Jeeps that used a torque tube that pivots off the stock transfer case can use this chain assembly to upgrade their linkage. The clutch pedal & bellhousing arm use rods that connected to this torque tube. We offer this new chain control assembly that removes the torque tube & rods and replaces them with a sprocket and chain. This controller utilizes the stock pedal and clutch arm. It can be easily installed and offers Jeep owners a great mechanical advantage on most Jeeps.

Bill Of Materials

• H.H.C.S. 5/16 -18 X 1 LG / 723105
• LOCK WASHER 5/16 PLATED / 723103
• 5/16 -18 X 1-1/4 H.H.C.S. / 723134
• 5/16 -24 HEX JAM NUT zinc / 723131
• CHAIN-#40 X 1/2 PITCH / 716649
• BRACKET- JEEP CLUTCH LINKAGE / 716646
• CHAIN-MASTER LINK / 716645
• COVER- CHAIN CONTROL / 716648
• ROD END- MALE 5/16-24 RH / 716647
• 5/16 -18 NYLOC HEX NUT / 723141
• IDLER SPROCKET- #40 17 TOOTH / 716644
• CONNECTOR- CLUTCH CHAIN CONTROL / 716641
• CABLE- CLUTCH CONTROL BUSHART / 716642
• H.H.C.S. 1/2 -13 X 1-1/2 gr. 5 / 725008
• LOCK WASHER 3/8 ZINC / 723704
• NUT 3/8 -16 PLATED GRD 5 / 723701
• WASHER 3/8 SAE FLAT PLT / 723735
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• CONNECTOR- SPHERICAL/SLOTED / 716635
