NV3550/AX15 X NP T/C LINKAGE

SKU: 715545
$44.15
excluding shipping

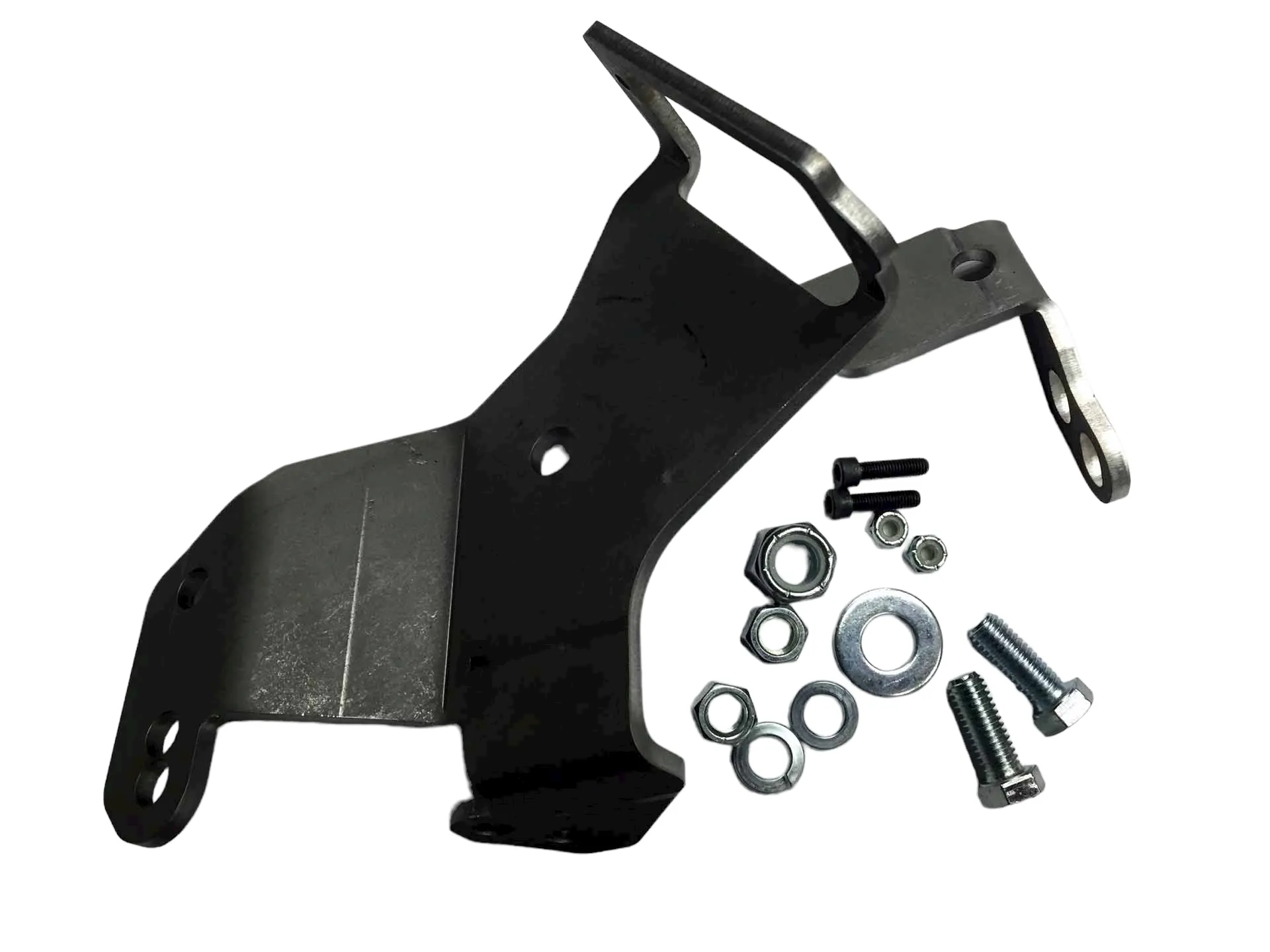

Shifter Bracket (for Jeep NP231 transfer cases)
+ -

Mounts to the tail housing of most transmissions or adapters keeping the stock linkage in the correct position from the transfer case. This bracket requires the use of your stock transfer case shifter handle, the linkage rod to your transfer case, and the shifter gate. All 1987-95 Jeep linkages used a gated shifter that pivoted off of a support bolt.

You will remove the handle and need to grind off the two rivets that retain the gate on your stock bracket. We have provided two new bolts to install the gate back onto our new shifter bracket. This bracket is designed around a Peugeot transmission replacement, the length between the transfer case and the handle may be different on other applications. The shifter rod may need to be lengthen or replaced. We do offer a new replacement rod PN715545C. We also offer a new transfer case shift handle that uses one of our custom printed knobs. PN715545H (handle & knob kit).

Bill Of Materials

Products specifications
Transmissions New Venture NV3550 Manual 4 Wheel Drive Jeep 2000-2004
Transfer Cases Jeep New Process 231 (23 Spline Input)
Transfer Cases Jeep New Process 231 (21 Spline Input)
*
*
*
