C4 SHORT 300M X ATLAS ADAPTER

Advance Adapter

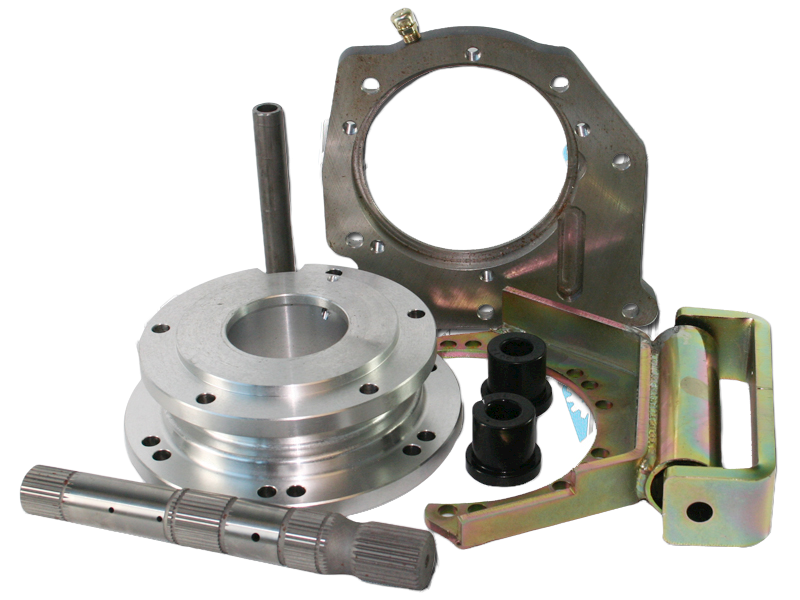

The Ford C4 adapter to the Atlas Transfer Case is 2.90" in length. And the overall length of the transmission and adapter is 19.90". Adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes a new transmission main shaft made from 300M, adapter housing, adapter plate, crossmember kit, C4 vent, fastening hardware, and adapter instructions.

Transfer Case

The adapter assembly will fit our Atlas 2 speed transfer case with a 27 spline input shaft.

Transmission

The kit is designed for exclusive use with the Ford C4 automatic transmission. The Ford C4 is a 3 speed transmission was used between 1963-'82. The transmission bellhousing is removable, the overall length measures 17.00".

Bill Of Materials

• STUD BOLT 3/8 -16 X 1-1/2 / 723714
• NUT 3/8 -16 PLATED GRD 5 / 723701
• 5/16 -18 X 1 F.H.C.S. / 723147
• 3/8 INT.STAR WASHER / 911003
• BOLT 3/8 -16 X 1.00" SHCS ZINC / 723731
• ADAPTER- C4 TO ATLAS / 51-9210
• ADAPTER- C4 TO ATLAS SHORT / 51-2902
• HEX NUT 3/8 -24 PLATED GRADE 5 / 723705
• VENT ASSY / C4 CASTING USE 303401 / 716061
• CROSSMEMBER MOUNT / 716055
• SHAFT- C4 OUTPUT SHORT GM27T / 52-2905
