Advance Adapter

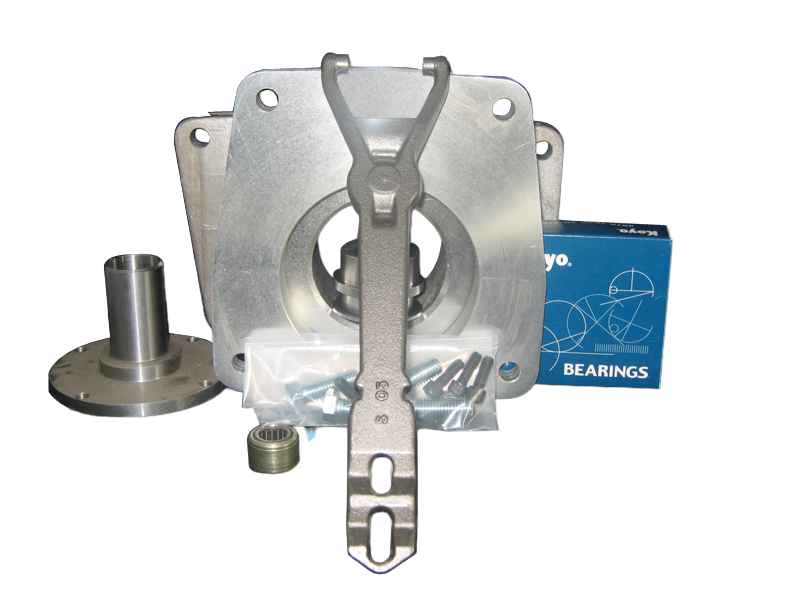

This adapter plate assembly is used to adapt a GM Engine to the Scout T-18, T-19, T-98 4 speed manual transmission. The adapter plate is 3.750" in length and is manufactured from 356-T6 heat treated aluminum alloy. Included in the adapter plate kit you will receive an adapter plate, 4.686" bearing retainer, pilot bushing, throw-out bearing collar, throw-out bearing, clutch fastening hardware, and adapter instructions.
Note: The bearing retainer included in this kit measures 4.686" in diameter and fits GM Bell housing with the same dimension. If you have a GM Bell housing with a 5.125" index hole, we offer an index hole reducer p/n 716078. The reducer is sold separately.
Note: The throw-out bearing included in this kit requires a Centerforce 11" pressure plate p/n CF165473S. A Scout clutch disc is retained when using this adapter kit.
Transmission
This adapter plate kit is designed for exclusive use with the Scout T-18, T-19, T-98 4 speed manual transmission. These transmissions were used in 1969-82 model years. These Borg Warner 4 speed transmissions have a long 10-1/4" stickout with a 1-1/4" 10 spline input shaft. The Scout transmission can be identified by a case length of 11.875", and a casting number of T-18, T-19, 1301 or 1309.
Bill Of Materials
712530
