Advance Adapter

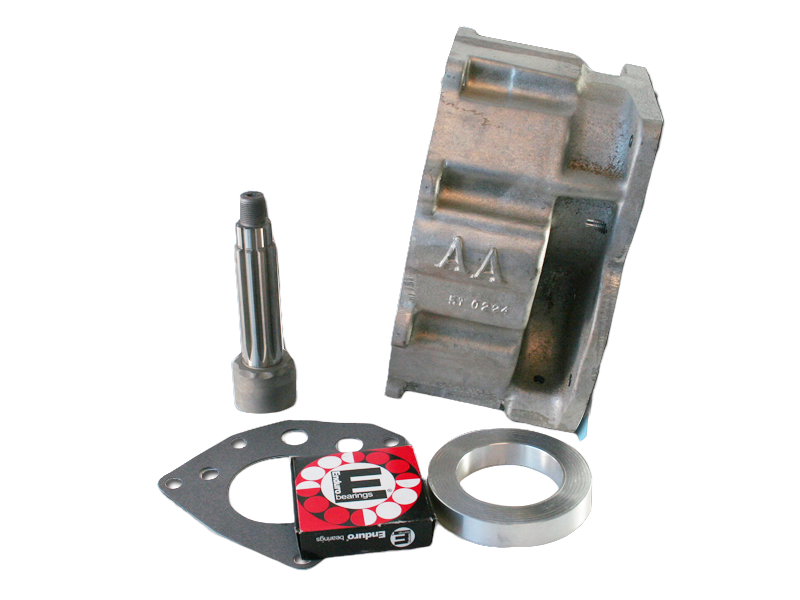

The Dodge NV4500 adapter to the Land Cruiser 10 spline transfer case is 6.375" in length. And the overall length of the transmission and adapter is 18.750". The adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes an adapter housing, 10 spline spud shaft w/ 29 spline internal, retainer, sealed bearing, gasket, nylon lock nut, fastening hardware, and adapter instructions.
Transfer Case
This adapter assembly fits 1963-73 10 spline transfer cases. The drive gear has 10 internal splines and a diameter of 1.375". There cases are equipped with a vacuum style shifter.
Transmission
Dodge 4WD NV4500 (1993-2000): This transmission is the same as the 1996-99 Chevy version; however, the only difference is the transmission input shaft which is 7-1/2" long with a pilot tip of .750". The output shaft on this transmission is 23 spline. To couple to this output shaft, you will be required to shorten the stickout length to avoid pre-loading the bearings in the transmission.
Dodge 4WD NV4500 (2001-2006): This transmission is the same as the 1993-00 Dodge version; however, The 2001 & newer Dodge transmission was changed to a 29 spline output shaft.
Dodge 4WD Heavy-Duty (Diesel) NV4500 (1993-2006): This transmission is normally used up to the Cummins Diesel. This transmission is similar to the standard duty version in reference to the bolt pattern. The input shaft is the same (7-1/2" long & .750" pilot tip), but the clutch spline is 1-1/4"10 spline. The output shaft on this transmission is also larger in diameter, which has 29 splines. To couple to this output shaft, you will be required to shorten the stickout length.
Options
Transfer case crossmember. This popular design bolts on the back of the stock transfer case.
P/N 716022 Crossmember
Bill Of Materials
50-0222
