TOY.L/C.19SP/GM V8 KIT(GM NV)

SKU: 27-0022G
$1,205.30
excluding shipping

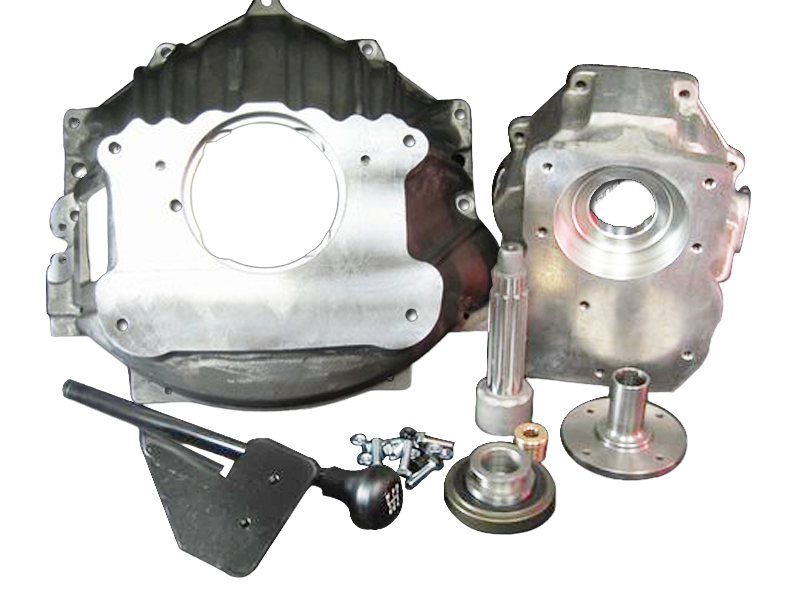

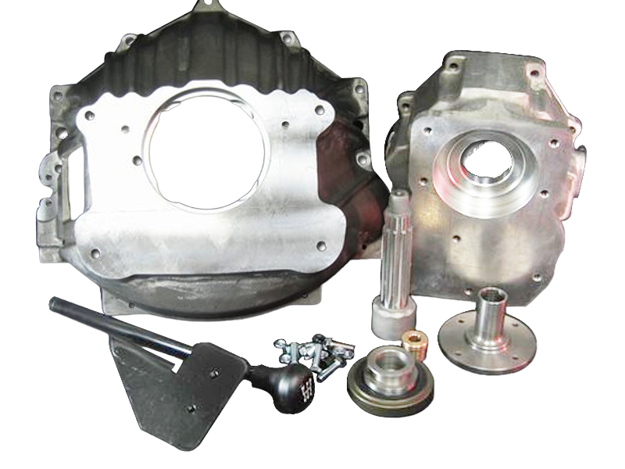

Adapts GM 32 Spline NV4500 to Chevy V8 small block & Toyota Land Cruiser 1980-1990 19 spline Transfer Case.
+ -

1. 1 Kit PN50-0214 GM NV4500 / TOY.L.C. 19 SPL.

2. 1 Kit PN712576 NV4500-1996 GM BHSG ADAPT. KIT

3. 1 Kit PN716050C NV4500 SHIFTER HANDLE ASSY.

4. 1 Kit PN716288 TOY. L/C SLAVE CYL. BRKT. NV4500

5. 1 Kit PN716316 T/O BEARING ASSY. L/C 3SP

Install Notes: Several adapter kits require you to shorten the existing transmission main shaft while it is still in the transmission case. This is common when a 4WD GM NV4500 is being used. Each instruction sheet gives the exact cut off location. Also refer to the pictures:



Bill Of Materials

Products specifications
Transmissions New Venture NV4500 Manual 4 Wheel Drive GM 1996-2003
Transfer Cases Toyota Land Cruiser (August 1980-1990) - (19 Spline Input)
Engine Chevy 4.3L V6 & 3.8L V6
Engine Chevy Small Block V8 Gen 1 & 2
*
*
*
