This kit is designed to work with the GM 153T flywheel.

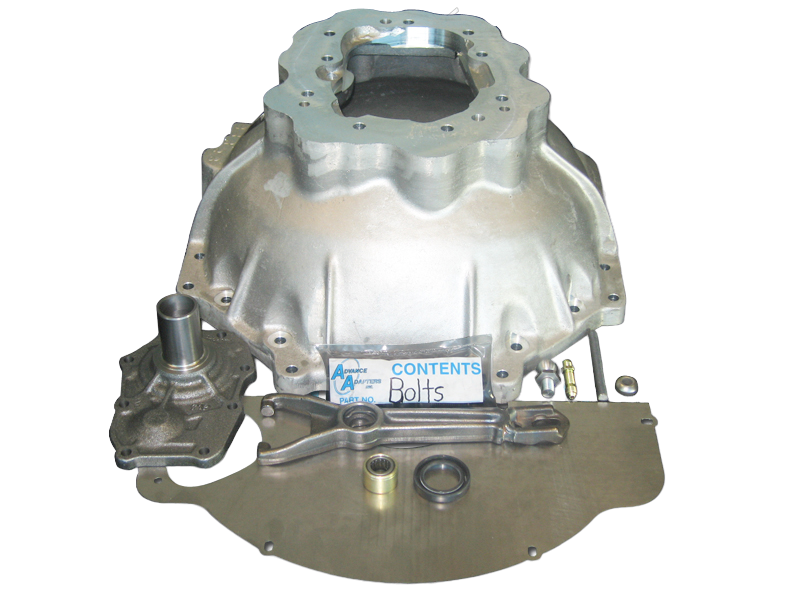

This adapter bellhousing assembly is used to adapt the GM 4.3, V8 to the Jeep AX5, 5 speed manual transmissions. The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, pilot bushing, AX5 bearing retainer assembly, seal, throw-out arm, slave cylinder push rod, slave cylinder push rod end, ball pivot, fastening hardware, and adapter instructions.
Note: Late model 4.3 V6 with an aluminum oil pan must use a 168th flywheel (CF700160) and will require starter 22-0001. Please use kit 712565V.
Note: This kit is not intended for use with any LS engine.
Transmission
The AX5 was used in 1985-2002 model years. It has a overall length of 22.50”. The output shaft is a 21 spline count with a flush stickout up to 1996 models years. And switch to a .500” stickout past the tailhousing in 1997 & newer Jeeps.
Required Clutch Options
P/N 716213 Slave Cylinder
P/N 716130-60 Hose assembly from master to slave cylinder
P/N 716104 10.5" Clutch Disc
P/N N1430 Throw-Out Bearing
P/N CF360056 10.5" Pressure Plate
Bill Of Materials
712565
