GM V8 MT 97-05 TJ 4CYL WRANGLER

Advance Adapter

This bolt-in, saddle mount kit is designed for exclusive use in the 1997-2006 Jeep TJ Wranglers with 4 cylinder (2.5L or 2.4L)engines. It is used to install a GM V8 and TH350 / 700R / 4L60 / 4L60E at the same time. This bolt-in engine kit is ideal only when using a GM auto.

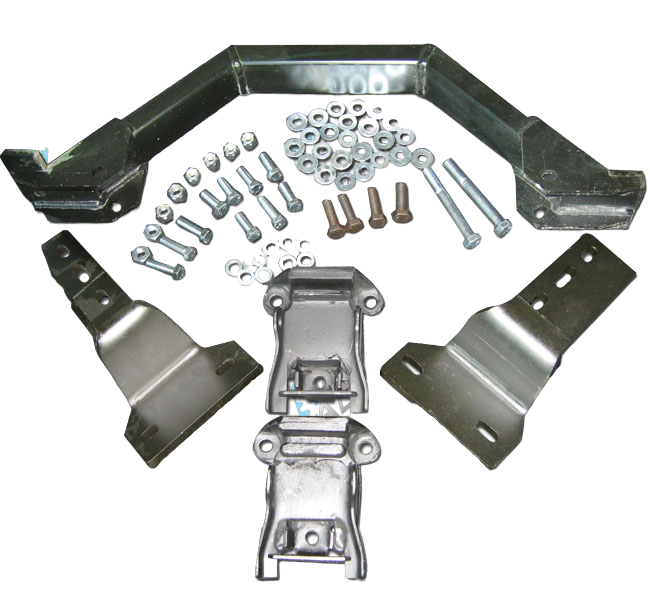

The bolt-in engine mount kit includes our bolt-in saddle mount, stock GM engine rubber mount / cushions, fastening hardware and engine mount instructions.

This mount will not work on 383 Stroker motors or 400 small blocks or aftermarket V8 oil pans with the depth of the front of the pan exceeds 3-5/8".

Note: The bolt-in engine mount saddle does not fit GM’s late model Gen III / LS-Series engines. See PN713092 & PN713093.

Note: When retaining the stock AX5 transmission, the AX5 must be moved forward to couple to the engine

If you have a 4.0 Litre TJ Wrangler, use kit PN713091.

Bill Of Materials

• GM V8 SADDLE MT 97-02 TJ / 713090-BLK
• MOUNT- TJ 4CYL TO V8 LEFT FRAME / 713090L
• MOUNT- TJ 4CYL TO V8 RIGHT FRAME / 713090R
• NUT- 10MM X 1.50 zinc / 720011
• 10mm FLAT WASHER / 720015
• HCS 10mm X 1.50mm X 35mm 10.9 gr. / 720037
• LOCK WASHER- 10MM / 720038
• 5/16 FLAT WASHER SAE ZINC / 723122
• NUT 3/8 -16 NYLOCK G5 PLT / 723703
• LOCK WASHER 3/8 ZINC / 723704
• H.H.C.S. 3/8 -16 X 1 PLATE GR5 / 723721
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• WASHER 3/8 SAE FLAT PLT / 723735
• NYLON LOCK NUT 7/16 -14 PLT / 724301
• H.H.C.S. 7/16 -14 X 3-1/2 GR 5 zinc / 724311
• MOUNT-STOCK GM / 4980
