The transfer case input gear (which meshes directly with the idler gear) changed from 34-tooth to 32-tooth in April 1986.

This change happened simultaneously with Toyota upgrading the transfer case idler shaft diameter from 34mm to 38mm. Consequently, the tooth counts on the mating internal gears had to change to accommodate the larger shaft size and different bearing dimensions.

The exact breakdown of internal gear teeth changed as follows:

• Before April 1986 (34mm Idler Shaft):
  • Input Gear: 34 Tooth
  • Primary Idler Gear: 45 Tooth
  • High-Speed Output Gear: 34 Tooth
• April 1986 to 1990 (38mm Idler Shaft — Late FJ60 & All FJ62):

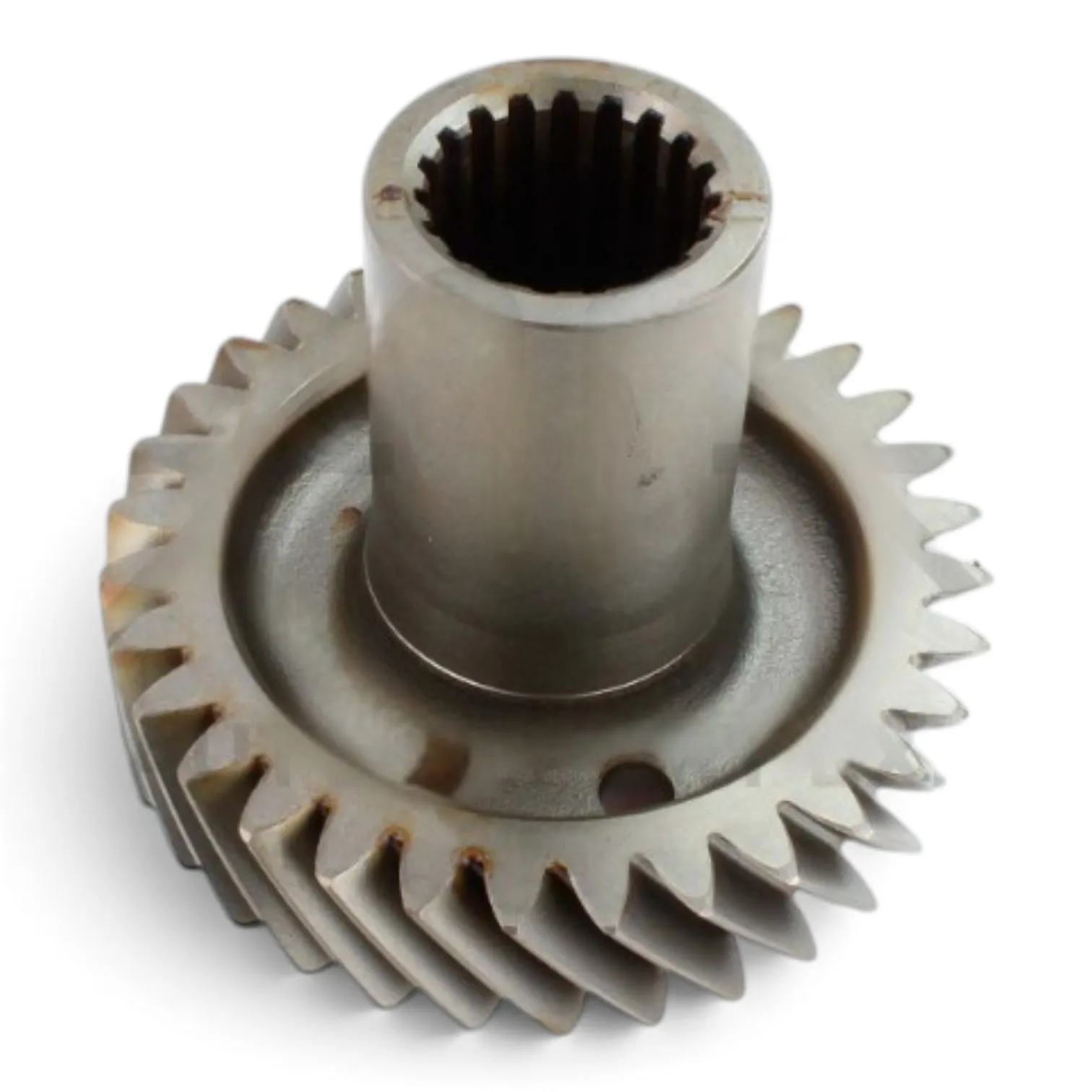

  • Input Gear: 32 Tooth
  • Primary Idler Gear: 43 Tooth
  • High-Speed Output Gear: 32 Tooth
