DODGE NV4500 & TR-4050D TO FORD V8 BHSG.

Advance Adapter

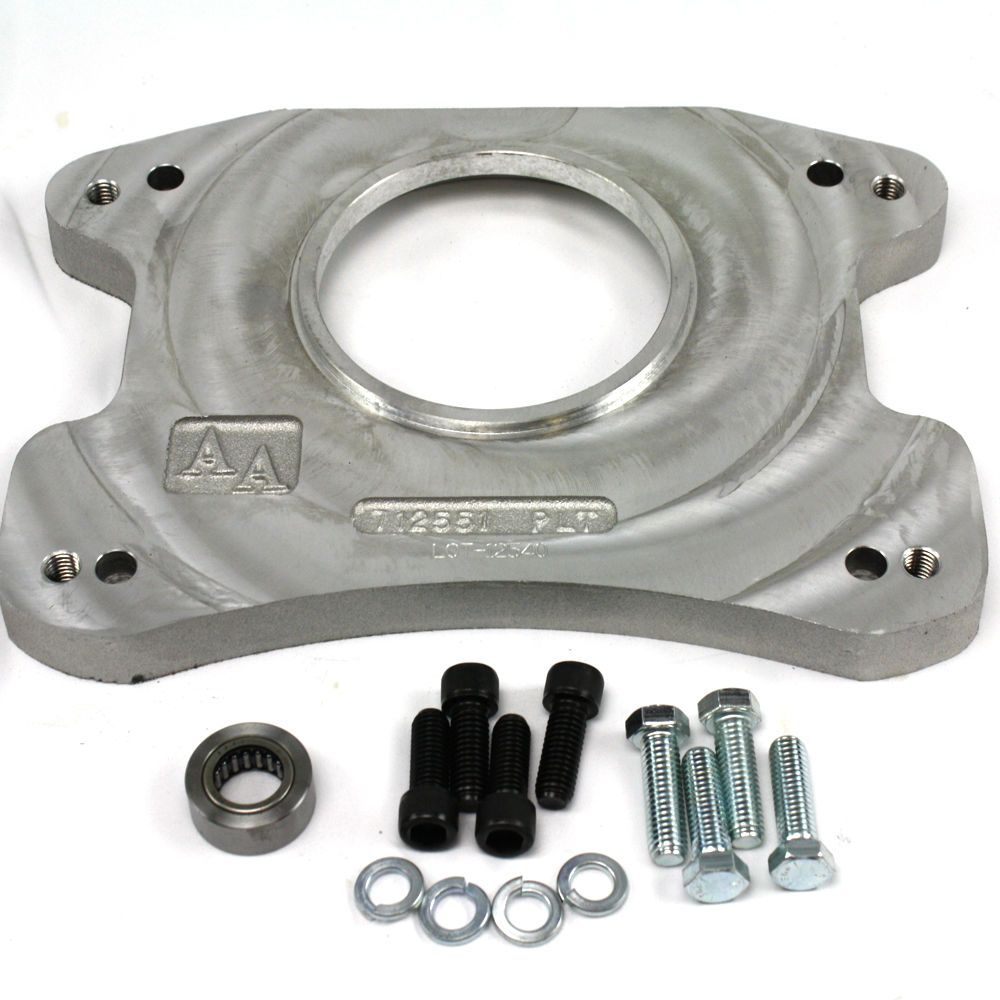

This adapter plate assembly is used to adapt a Ford Engine to the Dodge NV4500& TR-4050 5 speed manual transmission. The adapter plate is .875" in length a is manufactured from 356-T6 heat treated aluminum alloy. Included in the adapter plate kit you will receive an adapter plate, custom pilot bushing, fastening hardware, and adapter instructions.

Note: The adapter plate is for exclusive use with only the gasoline V8 NV4500 and the TR-4050D 5 speed with a 1-1/8" diameter, 10 spline input shaft.

We offer clutch components that will aid with this installation. We offer a Centerforce pressure plate for the Ford engine with a chevy disc for these transmissions (NV45000 & TR4050) CFMST735000

Note: This adapter plate requires a Ford truck bell housing with a 4.848" diameter center index hole.

Bill Of Materials

• 7/16 -14 X 1-1/2 Grd 5 hhcs / 724349
• S.H.C.S. 7/16 -14 X 1-1/4 / 724317
• DODGE NV TRANS/FORD B/H ADAPT. / 712551-PLT
• BUSHING- PILOT .750 TIP FORD CRANK 1.37 / 716122
• LOCK WASHER 7/16 STD PLTD / 724303
