DANA 300/GM V8 B/H KIT(D29)

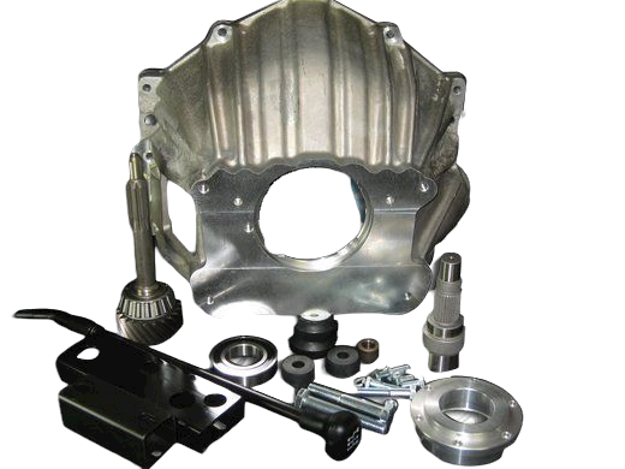

KIT CONSISTS OF:

No. Qty Part No. Description

1. (1) Kit PN52-0229 29 SPLINE DANA 300 INPUT
2. (1) Kit PN712576 NV4500-1996 GM BHSG. ADAPTER KIT
3. (1) Kit PN716021 DANA 300 CROSSMEMBER MOUNT
4. (1) Kit PN716048 DANA 300 CROSSMEMBER SPACER
5. (1) Kit PN716050D1 NV4500 SHIFTER HANDLE ASSY.
6. (1) Kit PN716221 DANA 300/NV4500 RETAINER KIT
7. NV4500 OUTPUT SHAFT-MUST BE SHORTENED

INSTALLATION NOTES:

This kit is designed to fit the 29 spline Dodge Standard Duty NV4500 transmission.

The front bearing retainer must be removed with the stock input shaft. Install a new GM style input shaft. The bearing retainer must be modified as listed on the 712576 Instruction Sheet.

The overall length is 25.125”. These kits use an new custom bellhousing that bolts to the GM engine. The stock Jeep clutch torque tube bracket can be mounted directly to our bellhousing. This bellhousing also has provisions for a stock Jeep Iron Duke slave cylinder. This kit also include a crossmember mount & spacer to properly support the transmission onto the stock crossmember. The stock crossmember will require some modifications, and a body lift is recommended.

Bill Of Materials

• SHAFT- D300 INPUT 29T/NEW VENTURE / 52-0229
• DANA 300/NV4500 RETAINER KIT / 716221
• NV4500 DODGE 99UP HANDLE ASSY. / 716050D1
• DANA 300 CROSSMEMBER SPACER / 716048
• NV4500 & TR-4050 GM BHSG ADAPT.KIT / 712576
• DANA 300 CROSSMEMBER MOUNT / 716021
