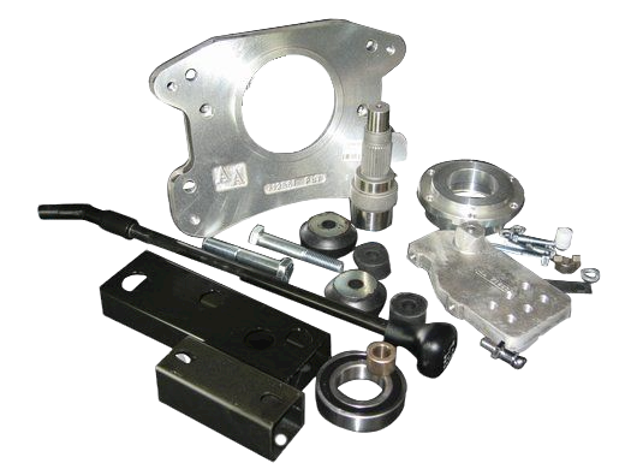

DANA 300/CHEVY V8 KIT(D29)

KIT CONSISTS OF:

No. Qty Part No. Description

1. 1 Kit PN712550 DODGE NV4500 x GM 5.125 DIA. BHSG.

2. 1 Kit PN716021 DANA 300 CROSSMEMBER MOUNT

3. 1 Kit PN716048 DANA 300 CROSSMEMBER SPACER

4. 1 Kit PN716050D1 NV4500 SHIFT HANDLE ASSY

5. 1 Kit PN716221 DANA300/NV4500 RETAINER KIT

6. 1 Kit PN716638 JEEP CLUTCH PIVOT-GM V8

7. 1 Kit PN52-0229 29 SPLINE INPUT GEAR

8. NV4500 OUTPUT SHAFT-MUST BE SHORTENED

The overall assembly length is 26.125”. These kits require the use of a stock GM bellhousing with a 5.125” index diameter. These kits use an adapter plate that couples the Dodge transmission to a standard GM bellhousing. We have included a mounting bracket for the stock Jeep mechanical clutch linkage. If your vehicle is equipped with a hydraulic clutch, a bracket will need to be fabricated. We do offer replacement slave cylinders, hoses and the proper fittings for this application. This kits also include a crossmember mount & spacer to properly support the transmission onto the stock crossmember. The stock crossmember will require some modifications, and a body lift is recommended.

Bill Of Materials

• JEEP CLUTCH PIVOT-GM V8 / 716638
• SHAFT- D300 INPUT 29T/NEW VENTURE / 52-0229
• NV4500 DODGE 99UP HANDLE ASSY. / 716050D1
• DANA 300/NV4500 RETAINER KIT / 716221
• DODGE NV4500 X GM 5.125D. BHSG / 712550
• DANA 300 CROSSMEMBER MOUNT / 716021
• DANA 300 CROSSMEMBER SPACER / 716048
