Advance Adapter

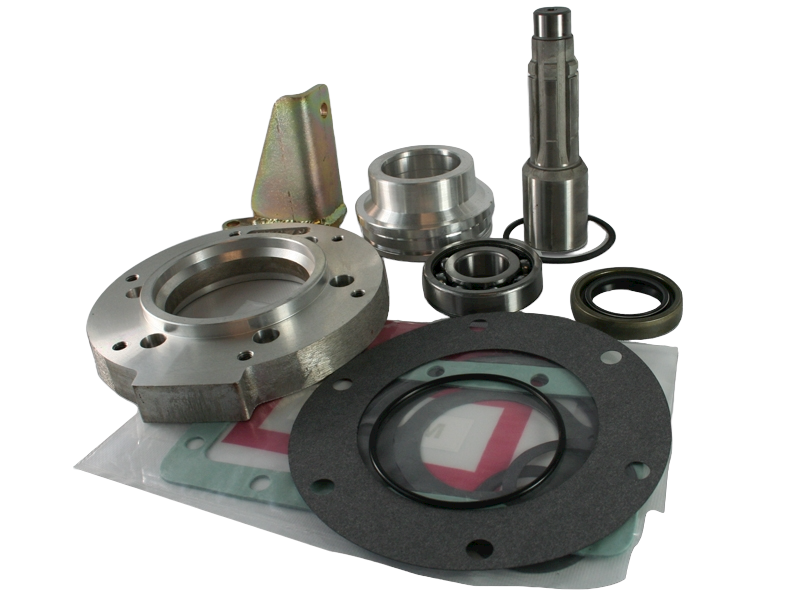

The Dodge NV4500 or TR-4050 adapter to the Bronco Dana 20 is 1.00" in length. And the overall length of this transmission and adapter is 19.50". Adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes a Bronco Dana 20 adapter plate, spud shaft with 23 internal spline, t-case shifter bracket, bearing retainer, bearing, snap ring, gaskets, seal, o-ring, fastening hardware, and adapter instructions. The adapters we manufacture only fit the Dodge standard duty NV4500 23 spline and 29 spline transmissions. The adapter we manufacture couples to the stock Dodge tailhousing. This adapter plate provides the proper bolt pattern and provision for a new alignment retainer and special spud shaft. The spud shaft is available both the 23 and 29 spline inputs found on the Dodge NV4500s.
Transfer Case
The adapter assembly will fit any 1966-77 Bronco Dana 20 transfer case. This adapter will only work with the "T" style shifter.
Transmission
The adapter kit is designed for the Dodge 4WD NV4500 or TR-4050 transmission with a 23 spline output shaft. These transmissions work well with the early Broncos. When installing these components, driveline and floorboard modifications will be required.
Options
Your Ford bellhousing will also need to be adapted. The Dodge NV4500 and TR-4050D has a 7-1/2" long input shaft. We manufacture an adapter plate that bolts to the front of this transmission. This compensates for the longer input shaft and provides the necessary Ford bellhousing bolt pattern. Since the stock bellhousing is being retained, clutch linkage does not become a factor. PN712551 - Dodge NV4500 to Ford bellhousing 4.848" index (adapter length 7/8")
Another consideration is the clutch disc spline. The stock Ford is 1-1/16" 10 spline, and the transmissions are 1-1/8" 10 spline; therefore, a new clutch disc will be required. P/N 383735 - 11" Centerforce clutch disc
The transfer case adapter does not have provisions to retain the stock crossmember support. We offer both a new tubular crossmember and a rubber support for supporting these transmissions into the Bronco. P/N 716000-4 - Crossmember support mount P/N 716101-2 - Rubber mount
We offer a complete transmission kit for the NV4500 which includes the components listed above except for the 716000-4 crossmember. These kits also include a new NV4500 shifter handle. P/N 27-0044T - Dodge NV4500 23 spline transmission to Ford Dana 20
Bill Of Materials
50-0209
