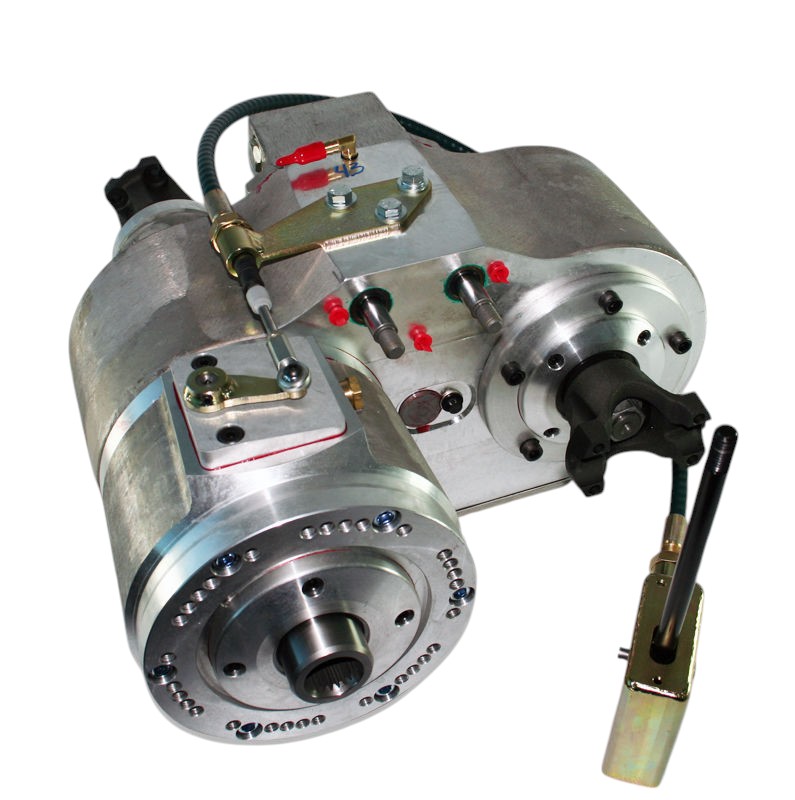

JK Atlas Transfer Case
The Advance Adapters Atlas gear-driven transfer cases are the ultimate in gearing and strength. With over 20,000 units sold, the Atlas is the solution for combining both on and off-road performance. This Atlas transfer case JK model is built for third-generation Jeep Wranglers so their owners can go rock crawling, dune bashing, mudding and any other off-road excursion. Designed for use with a Jeep JK manual transmission, they are built to your specifications to provide exactly the right gearing for 2WD and 4WD adventures.
Jeep Transfer Case Made in the U.S.
The Atlas name is legendary and synonymous with rock crawling and off-road vehicle performance. Atlas transfer cases have won over the industry for their superior performance, bulletproof design and ability to get you anywhere you want to go. When added to the Jeep Wrangler, they give this popular vehicle even more torque and acceleration to make it over any obstacle — nature or man-made.
The Atlas Transfer Case Jeep JK unit is sure to change the way your vehicle performs off-road. They are American-made and designed by the four-wheel drive experts. You will benefit greatly by understanding the Atlas characteristics and how to apply them for the ultimate in performance.
Customized Jeep Manual Transmission Transfer Cases
When you place your order, choose from five different low-range gear setups that are paired with a 1:1 high-range gear. We construct the case using a 356-T6 heat-treated aluminum alloy for lightweight strength. These universal stick shift Jeep transfer cases can be installed with a left or right drop. Everything you need for installation is included, and we back all Atlas transfer cases with a one-year material and workmanship warranty.
Don't sweat it — order in confidence knowing that after placing your order, one of our technical specialists will contact you to nail down the specifics on your application before your order leaves the building. Shop online with confidence knowing you will get the correct transfer case, accessories and support to make your installation a positive experience from the start. Since 1971, Advance Adapters has been designing innovative conversions products to fuel the off-road outdoor style.
Application:
- Jeep JK Wrangler 2007 - 18
- Manual transmission
- Included: Transfer case, site tube, cable shifters, yokes, electronics, warranty, installation instructions and oil
- Driveshafts...modifications required
Specifications:
- Gears: Helical cut
- Case: 356-T6 heat-treated aluminum
- Weight: 130 lb. (dry)
- Bearings: Needle and taper rollers
- Lubrication: 2.5 quarts (2 liters)
- Dimensions: 18.8" (1310 CV)
Gearing Options Available:
- High-range: 1:1
- Low-range: 1.5:1, 2.72:1 and 4.08:1
- Low-range: 2.0:1, 2.72:1 and 5:44:1
- Low-range: 3.0:1, 2.72:1 and 8.16:1
- Low-range: 3.8:1, 2.72:1 and 10.34:1
- Low-range: 4.3:1, 2.72:1 and 11.70:1
Features:
- Universal case — right or left drop
- Bulletproof design
- Fully synchronized
- Shift-on-the-fly capability
- Cable shifters
- Twin stick
- 2WD high and 4WD high
- 2WD low (rear axle) — not available on a stock NP241 T/C
- 2WD low (front axle, allows front dig) — feature not available on a stock NP241 T/C
- 4WD low
Available Options:
- Aluminum shift knobs
- Installation kit which includes three quarts of oil PNX11324
Bill Of Materials
ATLAS-4SP-JK-M
