Advance Adapter

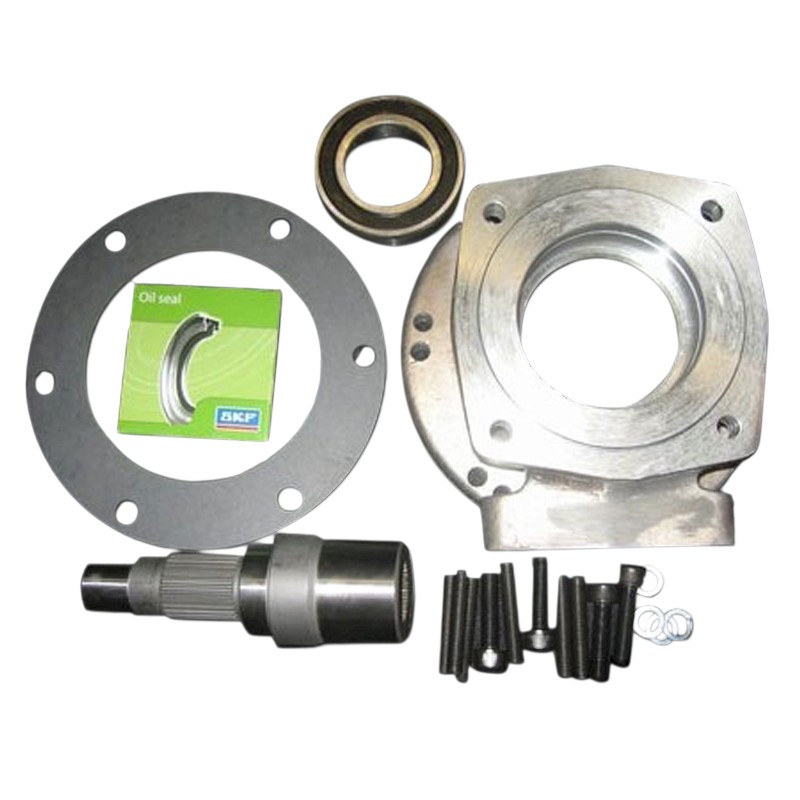

The 700R automatic transmission adapter to the Jeep Dana 300 transfer case is 3.650” in length. The adapter material is 356 T6 heat treated aluminum alloy and has a provision for a transmission mount. The adapter kit includes an adapter housing, new 27 spline Dana 300 input shaft, bearing, snap rings, o-ring, gasket, fastening hardware and adapter instructions.
Transfer Case
The adapter assembly fits the1980-86 Jeep Dana 300. All 300s use a 23 spline input. Some of the adapters we manufacture include a new Dana 300 input with a different input spline. Therefore, if you obtain a Dana 300 from a salvage yard, please verify the input spline.
Transmission
This kit is designed for exclusive use with the 4wd 700R-4 / 4L60 / 4L60E manufactured thru 1996. The overall case length of the transmission is 23.375”, has a non-removable bell housing, and a 4 bolt square rear case. Late model 4L60E automatics will have a removable bell housing and a 6 bolt hex pattern rear case. The late model automatic will require an additional Advance Adapter to work with this kit (50-0405).
Options
P/N 716021 Heavy duty transmission mount
P/N 403300 Dana 300
Bill Of Materials
50-6309
