700R-4 X NP205 T/C(REPL.TH400)

Advance Adapter

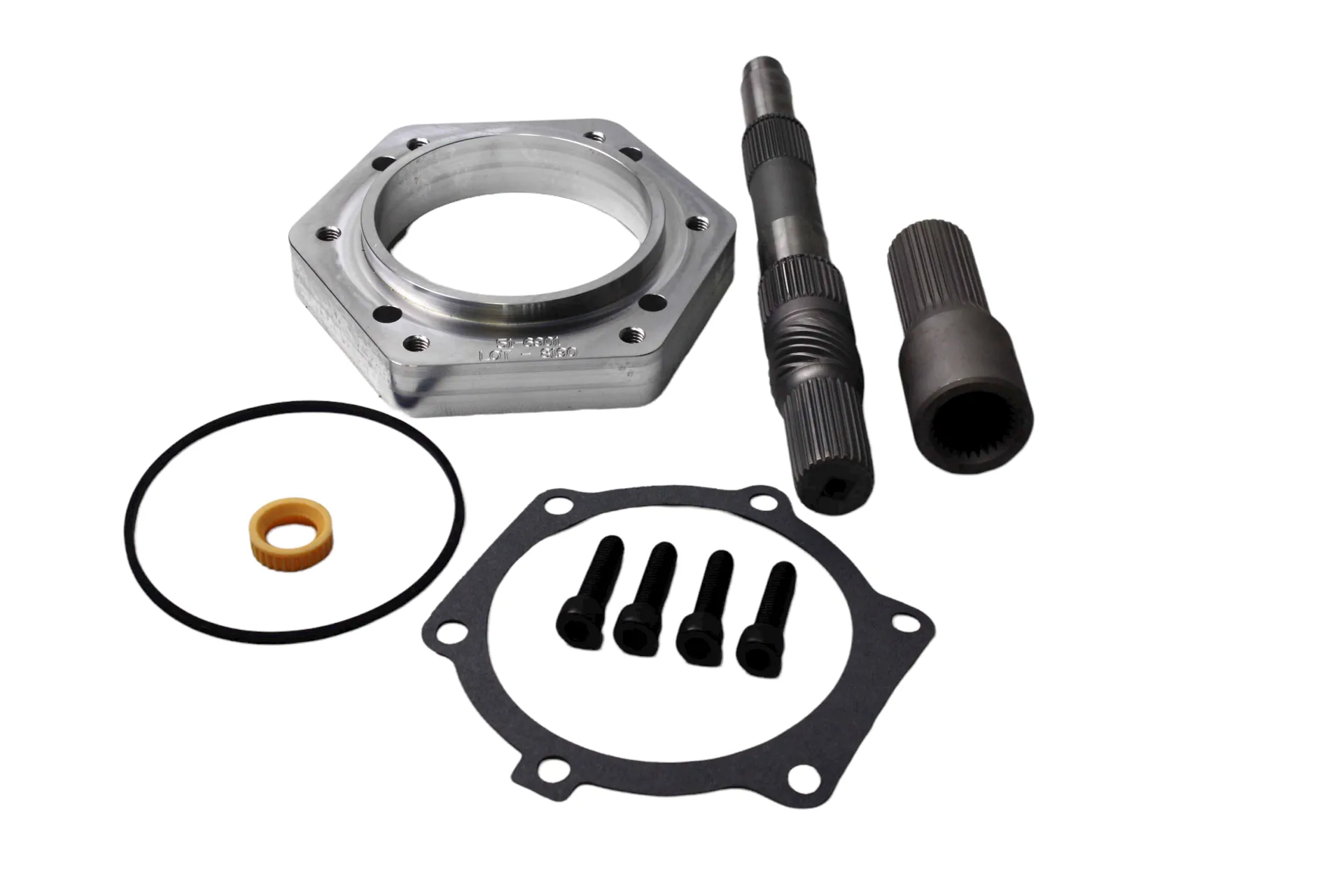

The GM 700R4 main shaft kit is used when replacing a TH400 in model years 1971-84. Once installed into the 700R4, the output side of the 700R4 looks identical to a 4WD TH400 that is being replaced. The adapter kit includes a new output & spud shaft, plastic washer, adapter plate, TH400 gasket, o-ring, metric fastening hardware, and adapter instructions.

Transfer Case

The adapter assembly fits 1971-84 GM NP205. This adapter assembly requires that use of the original GM TH400 4wd adapter.

Transmission

This kit is designed for exclusive use with the 700R-4 / 4L60 / 4L60E. The overall case length of the transmission is 23.375, has non-removable bell housing, and a 4 bolt square rear case. Late model 4L60E automatics will have removable bell housing and a 6 bolt hex pattern rear case.

Note: The late model 4L60E automatics will require VSS kit. We manufacture two styles of VSS kit's, 716073 fit model years 1993-96 and 50-0405 fit model years 1997 to current.

Bill Of Materials

• 700R REPLACING T400 1976-79 / 51-6901
• SHAFT- GM 27T F X GM 32T M 4.66 OAL / 52-6905
• OUTPUT SHAFT - STOCK 700R4 4X4 13.25 / 52-7450
• GM 700R/4L60E NYLON BUSHING / 716082
• GM T400/4L80E 862-4709 GASKET / 716510
• GM AUTO TRANSMISSION O RING / 716511
• 10mm-1.5THR X 40mm S.H.C.S. black oxide / 720046
