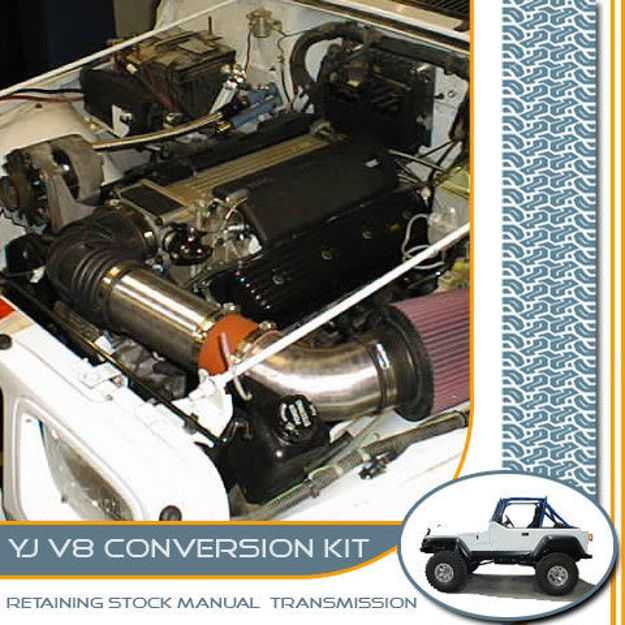

For use with stock Asin AX5 5 speed transmissions. This transmission option was available from 1987-1996 and was mated to the stock 2.5L 4 cylinder engine. The Asin AX5 is considered a light duty transmission and is not best suited for V8 conversions. However we have had many requests over the years to manufacture this kit, and have had some success with this transmission surviving the increased power of stock V8 engines. Please note that this conversion package is only compatible with Chevy V8 or 4.3 V6 engines that are equipped or have the ability to be equipped with the 12.750" Chevrolet 153 tooth flywheel. Please click on the part numbers below for a more in depth look at the kit components individually.
Kit Includes: 1. PN712565 Bellhousing Adapter Kit 2. PN716104 10.5" Clutch Disc 3. PNLC360056-PP 10.5" Pressure Plate 4. PN716130 Hydraulic Fitting 5. PN713001 Engine Mount System 6. PN716693-AA Aluminum High Flow Radiator 7. PN716679 22LB. Radiator Cap 8. PN716213 Slave Cylinder 9. PNN1430 Release Bearing 10. PN716130-60 60" Stainless Steel Braided Hydraulic Hose 11. PN716130F FITTING -3 MALE TO MALE 7/16" X 24 INV
Bill Of Materials
CP-YJ003
