JEEP NV3550 &DANA 300 ROTATION

Advance Adapter

Our rotation ring allows the Dana 300 transfer case to be rotated upwards to four positions. How far you go depends on your vehicle; the rotation kit could allow the use of a skid plate that is virtually flat across the bottom of the frame.

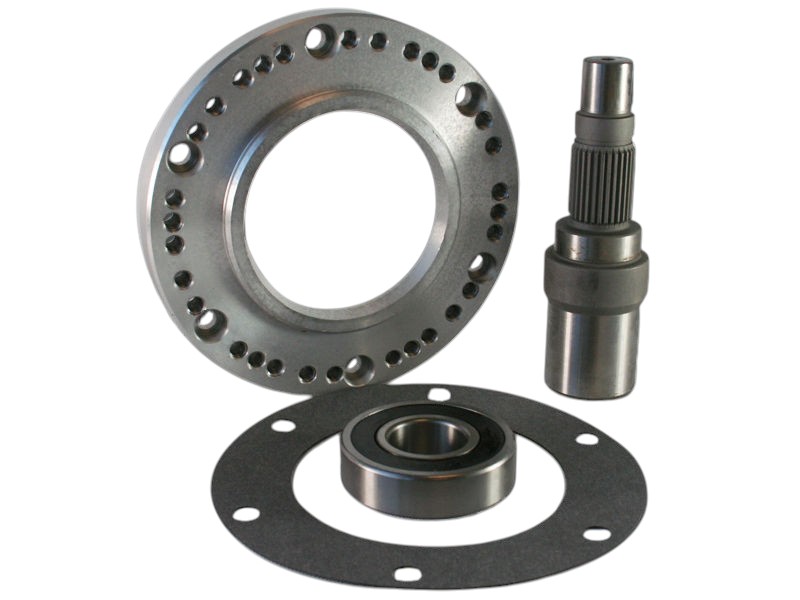

The kit includes a rotation ring, new 23 spline Dana 300 input shaft, sealed bearing, gaskets, fastening hardware and adapter instructions.

Transmission

This rotation ring is designed for exclusive use with Jeep transmissions 1980 & newer with a flush stickout, 23 spline output shaft. This includes 904 / 999 / 727 automatics, T4,T5,T-176,SR4,NV3550 manual transmission.

Bill Of Materials

• ADAPTER- CIRCLE 6 ROTATION RING / 51-8603
• SHAFT- D300 INPUT 23SP-.750 LONGER / 52-3002
• SEALED BEARING 209RS / 716308
• GASKET-N.P.208 TRANSFER CASE / 716517
• NUT 3/8 -16 PLATED GRD 5 / 723701
• LOCK WASHER 3/8 ZINC / 723704
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
• BOLT 3/8 -16 X 1.00" SHCS ZINC / 723731
