TOYOTA FJ CRUISER/TACOMA 05-14 AUTO/ATLAS

The FJ Cruiser 2007 & up with an automatic:

The Tacoma's 2005 & up with an automatic 4.0L engine:

 The 4 Runners 2003 & up with an automatic 4.0L engine:

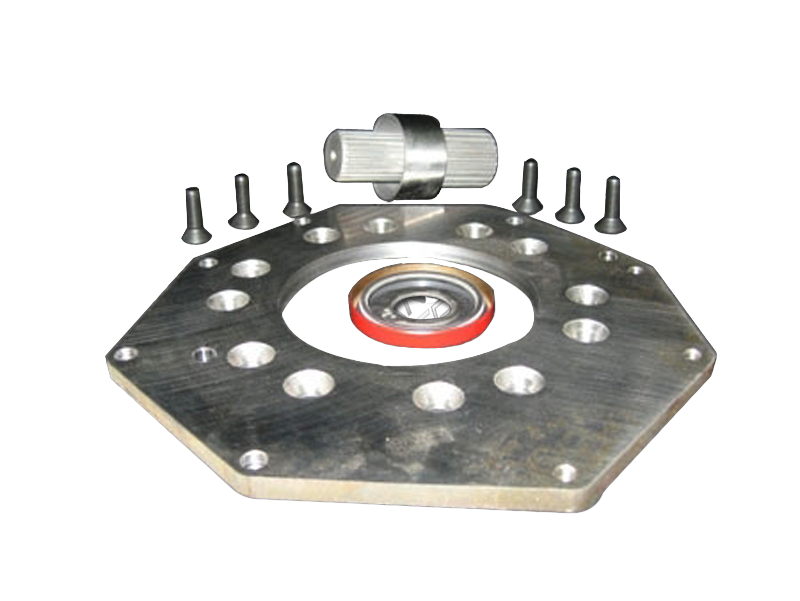

These are an easy upgrade with this adapter to the Atlas transfer case. we knew it wouldn't be long before the requests came in for drivetrain swaps. Although it does require a bit of modifying, the option of both the Atlas 2 and 4 speed transfer case is now available to fit to the stock automatic transmission. This kit comes with an adapter plate and spud shaft. The shaft allows the transmission to bolt up to the Atlas 23 spline transfer case. We recommend using a cable shifter due to the center console configuration in these vehicles.

The Atlas requires a short 23 spline input on both the 2 & 4 speed t/c's.

Bill Of Materials

• BLOCK- CABLE ADAPTER 42RLE ATLAS / 303318
• NUT- RETAINING CABLE 42RLE ATLAS / 303319
• ADAPTER- ATLAS TO TOYOTA / 51-5715
• SHAFT- TOY23 TO NP23 SPUD / 52-5710
• RETAINER- SEAL TOY TRANS/ ATLAS / 716189
• SPUD SHAFT SPRING FOR 50-5710 KIT / 716178
• BASE- TWIN STICK MOUNT 42RLE / 302051-RLE
• SEAL-SKF TOY/ATLAS / 716756
• COTTER PIN- 3/32 x 3/4" / 302455
• CLEVIS PIN- 1/4 x 1" / 302454
• F.H.S.C. 3/8 -16 X 1 / 723718
