GM BELLHOUSING WITH HYDRAULIC

Advance Adapter

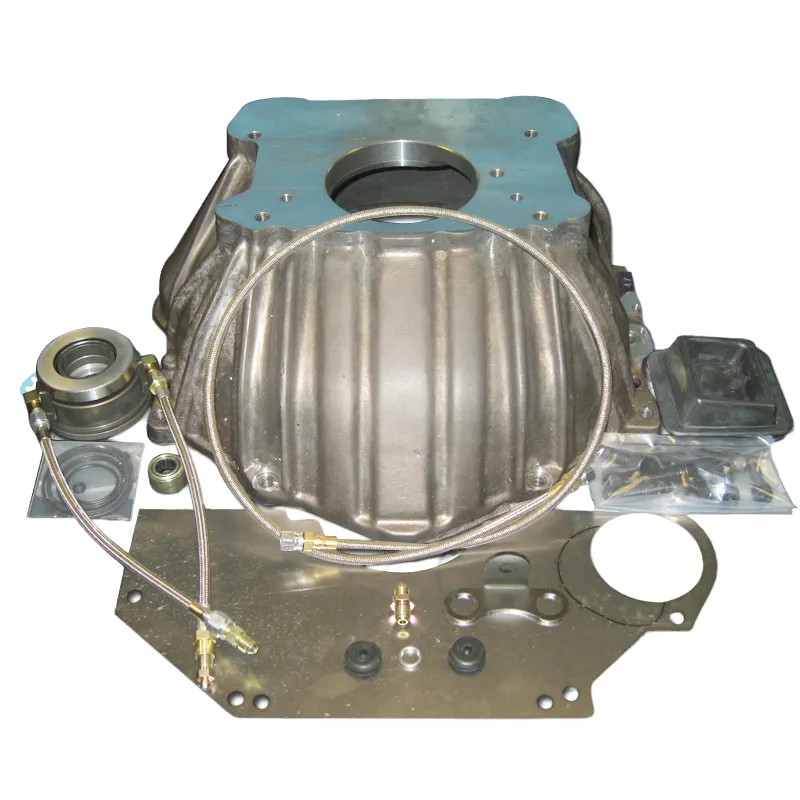

Bell housing material is 356 T6 heat treated aluminum alloy. The adapter kit includes a bell housing, dust cover plate, Mcleod internal release bearing, 42" hydraulic hose with dash 4 fitting, master cylinder fitting, crush washer, rubber grommet, GM pilot bushing, rubber boot for bell housing, fastening hardware and adapter instructions.

Transmission

The bell housing kit is design to work with exclusive use with the T5 transmission in the S-series trucks.

Note: This kit will not work on 1993 and newer T5's from a 2.2L 4cyl.

Required Options

Mcleod 11" Pressure Plate, p/n 716102-P

11" Clutch Disc, p/n 716102

Bill Of Materials

• WASHER-CRUSH FOR GM MASTER CYL / 712547-E
• FITTING- TO GM MASTER CYL.-4 (12x 1.0mm) / 712547-D
• BUSHING (STK. CHEVY) .590 / 716170
• GROMMET-RUBBER FOR HOSE BRKT / 712547-F
• RETAINER- HYDRAULIC HOSE / 712547-C
• DUST SHIELD- GM BELL HSG / 712548-PLT
• BELLHOUSING- GM T5 TRANS TO CHEVY V8 4.686 / 712547-BLK
• 42 STAINLESS HOSE-4 FITTING / 712547-B
• INTERNAL HYD. RELEASE BEARING / 712547-A
• H.H.C.S. 7/16 -14 X 1-3/4 gr.5 zinc / 724308
• LOCK WASHER 7/16 STD PLTD / 724303
• H.H.C.S. 7/16 -20 X 3/4 GRADE 5 zinc / 724356
• BOLT 3/8 -16 X 1.25" SHCS ZNC / 723730
• LOCK WASHER 5/16 PLATED / 723103
• T/O ARM BOOT - A/A BHSG. / 716332
• H.H.C.S. 3/8 -16 X 1-1/4 (GR5) zinc / 723722
• BOLT 5/16-18 X 0.50" HHCS PLTD / 723123
