Advance Adapter

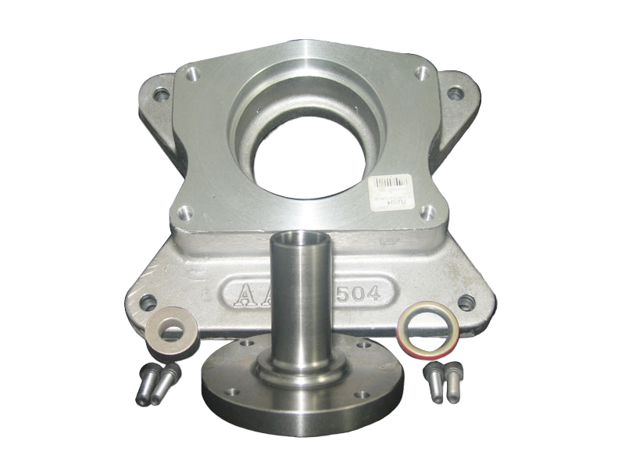

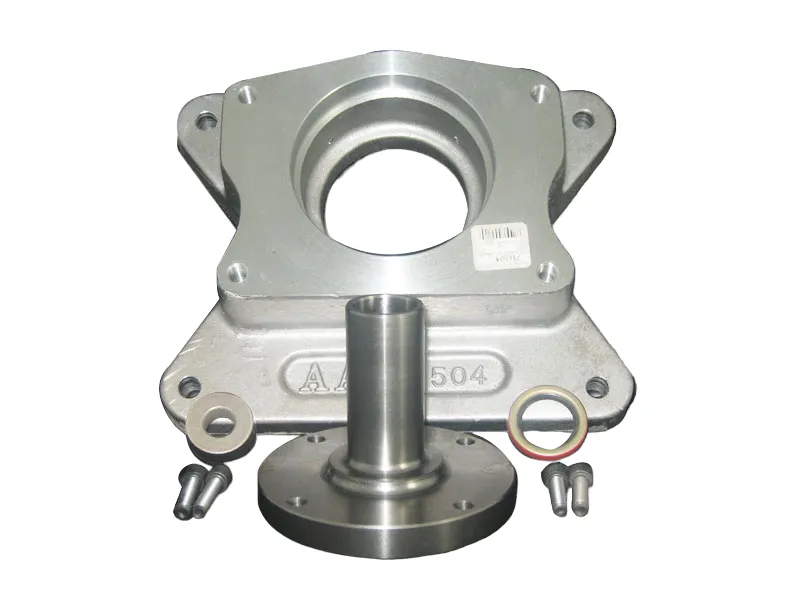

This adapter plate assembly is used to adapt a Ford Small Block V8 Engine to the Jeep / Scout T-90 3 speed manual transmission. The adapter plate is 2.685" in length and is manufactured from 356-T6 heat treated aluminum alloy. Included in the adapter plate kit you will receive an adapter plate, new Ford 4.848" bearing retainer, pilot bushing, seal, fastening hardware, and adapter instructions.
Note: When replacing a 4 cylinder engine, a new T-90 input shaft must be purchased, P/N 716014 & input bearing retainer from a 6 cylinder. A new cluster gear P/N 716018) is needed only when replacing a 4 cylinder input shaft that has 16 teeth on the cluster side.
Note: This adapter plate design kit requires a Ford bell housing.
Transmission
The T-90 3 speed transmission has a case length of 8.00". T-90 will be stamped on the case. This transmission was used in various models of Jeep from 1946-72 including military vehicles, Universal Jeeps, utility trucks and Scouts (1961-72). It was used in both 4 & 6 cylinder applications.
Bill Of Materials
712505
