Advance Adapter
These sturdy weld-in engine mounts allow the installer to fine-tune the engine placement according to transmission placement or other needs. A double rubber cushion on each side provides vibration isolation at the ends of the two mounts. The rubber cushions are secured with a large 5/8” diameter bolt. The engine side mounts have slots in them so you can position the engine closer to one side of the frame.

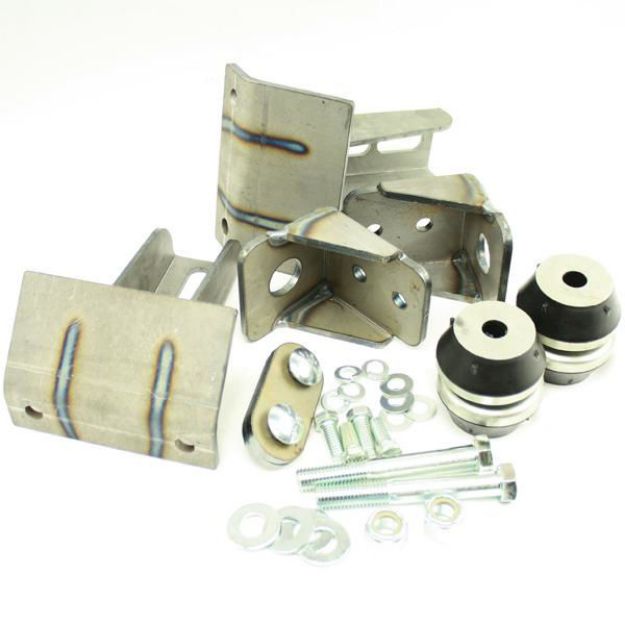

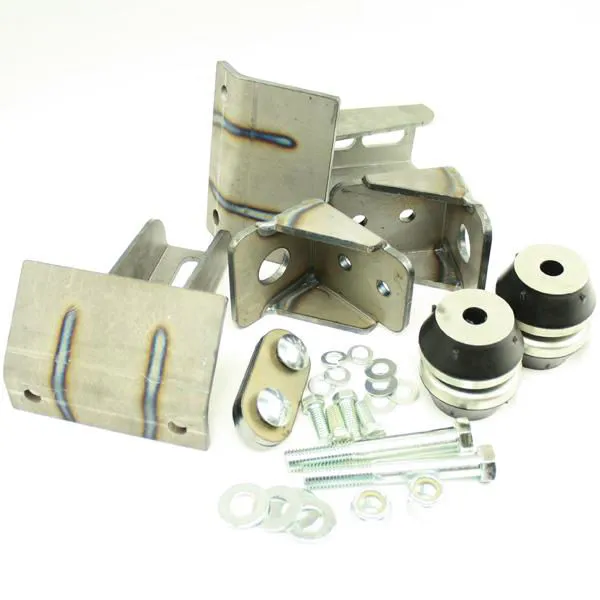

The engine mount kit includes two engine side mounts, two weld-in gusseted frame mounts, and rubber mount kit.
Note: 713011 is used with all Jeep / Buick 225, 231, 3.8 rear wheel drive engines. These mounts will fit frame widths up to 26". For frame widths wider than 26", we can include two wider frame perches to extend out to 29". (P/N 713037) wider frame perch
Bill Of Materials
Products specifications
|
Model
|
Scout II |
|
Model
|
Scout 800 |
|
Model
|
Scout 80 |
|
Model
|
J Series |
|
Model
|
Willys Truck |
|
Model
|
Willys Wagon |
|
Model
|
Grand Wagoneer |
|
Model
|
Wagoneer |
|
Model
|
YJ Wrangler |
|
Model
|
CJ8 |
|
Model
|
CJ7 |
|
Model
|
VJ Jeepster |
|
Engine
|
Buick 231 CID 3.8L V6 |
|
Model
|
MB |
|
Model
|
M38A1 |
|
Model
|
M38 |
|
Make
|
International Harvester |
|
Model
|
CJ6 |
|
Model
|
CJ5 |
|
Model
|
CJ3B |
|
Make
|
Jeep |
|
Model
|
CJ3A |
|
Model
|
CJ2A |
|
Model
|
CJ2 |
