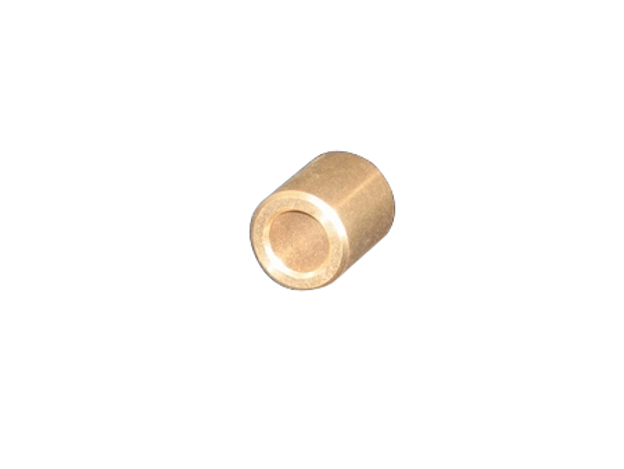

BUSHING- CHEVY CRANK

The 716193 is a custom extended pilot bushing for adapting ChevyV8 engines to transmissions with a .670” pilot tip. The bushing is normally supplied in our bellhousing kit PN712549 for mating a Chevy V8 to Ford transmission. The pilot bushing is sometimes purchased separately by customers attempting unique conversions where the OEM Chevy factory pilot bushing cannot be used due to its smaller .590” pilot bore.

Advance Adapters designed this special pilot bushing to solve the issue.

The dimensions of the 716193 pilot bushing are:
O.D X I.D. X LENGTH
1.09” X .670” X 1.25”

•  Advance Adapters conversion kits that include this pilot bushing include:PN712549
