4L60E HEX PATTERN/DANA 300

Advance Adapter

Note: This adapter assembly includes a new Dana 300 input shaft with 27 spline and replaces the existing stock Dana 300 input shaft.

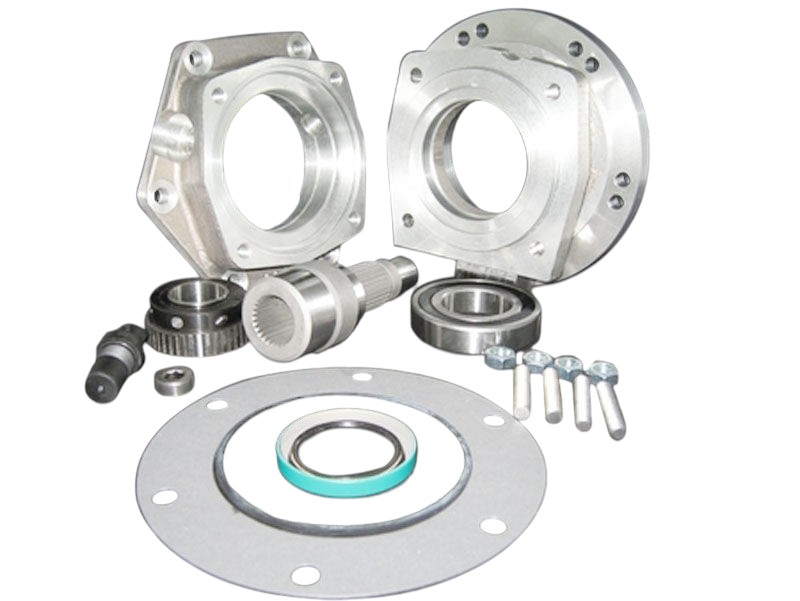

The GM 4L60E / 4L65E adapter to the Jeep Dana 300 is 4.00" in length. And the overall length of the transmission and adapter is 25.875". Adapter material is 356 T-6 heat treated aluminum alloy. The adapter has a provision for a transmission mount. The adapter kit includes an adapter housing, adapter ring, new Dana 300 input shaft with 27 splines, GM VSS sensor, reluctor ring, o-ring, gasket, fastening hardware, and adapter instructions.

This adapter kit only works with 716055 crossmember mount

Transfer Case

1980-86 Jeep Dana 300.

Transmission

The adapter kit is designed for exclusive use with a 1997 & up 4L60E / 4L65E 4wd automatic transmissions.

Bill Of Materials

• SENSOR- SPEEDOMETER / 300619
• ADAPTER- 4L60E/700R4 UNIVERSAL / 51-0405
• ADAPTER- 700R4 TO ATLAS- 2.5 / 51-9111
• SHAFT- D300 INPUT GM 27T SHORT / 52-0432
• RELUCTOR- 4L60 INTEGRAL CLAMP / 716074
• PLUG-22MM RELUCTOR SENSOR PLUG / 716079
• SEALED BEARING 209RS / 716308
• GM AUTO TRANSMISSION O RING / 716511
• GASKET-N.P.208 TRANSFER CASE / 716517
• SEAL FOR NEW VENTURE ADAPTERS / 716749
• 50-0432 KIT BOLT PACK / 714207
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
