DODGE NV4500/NP231 23TH KIT

Advance Adapter

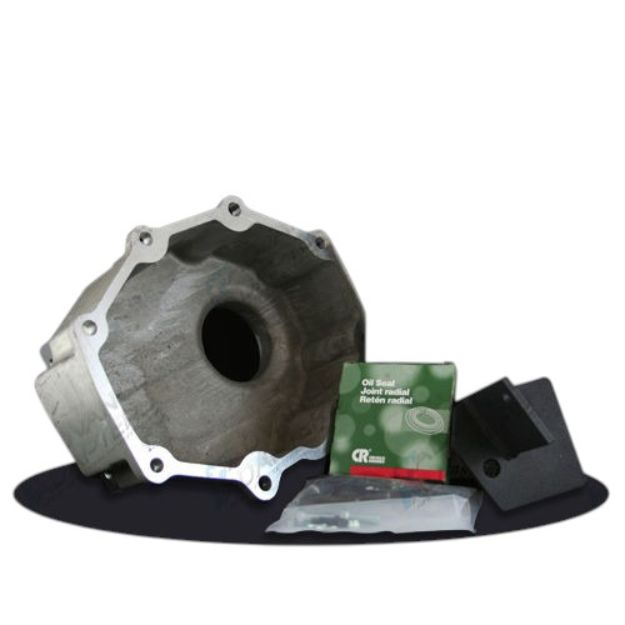

The Dodge NV4500 adapter to the Jeep 23 spline NP231 is 5.875" in length. And the overall length of this transmission and adapter is 18.250". Adapter material is 356 T6 heat treated aluminum alloy. The adapter has a provision for our heavy duty transmission mount. The adapter kit includes an adapter housing, NV4500 to NP231, seal, fastening hardware, and adapter instructions.

Transfer case

This adapter assembly will fit any Jeep New Process transfer case with a 23 spline input shaft. Jeep TJ optional transfer case bracket is PN715542 or PN715543-231 Cable linkage for Jeep TJ's transfer case . The use of the TJ bracket will require modifications to the adapter housing.

Transmission

The adapter kit is designed for exclusive use with a Dodge 4WD NV4500

Transmission with a 23 spline output shaft.

Options

Upgrade your 21 spline Jeep NP231 to a 23 spline input. Additional Information can be obtained in our on-line catalog, Jeep & Scout Section:

Transfer Case Information, Jeeps 1987-2005

PN716008 Heavy Duty transmission mount.

Bill Of Materials

• NV 4500 ADAPTER 5.875" / 51-0212
• SEAL CR#19466 / 716729
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
• HIGH COLLAR L/W 7/16 / 724324
• 10mm-1.5THR X 40mm S.H.C.S. black oxide / 720046
• NUT 3/8 -16 PLATED GRD 5 / 723701
• LOCK WASHER 3/8 ZINC / 723704
